Dynamic Information Board TransLED EMP 20C for Traffic Management

Railway & Traffic Control Equipment

Manufacturer: BIS LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

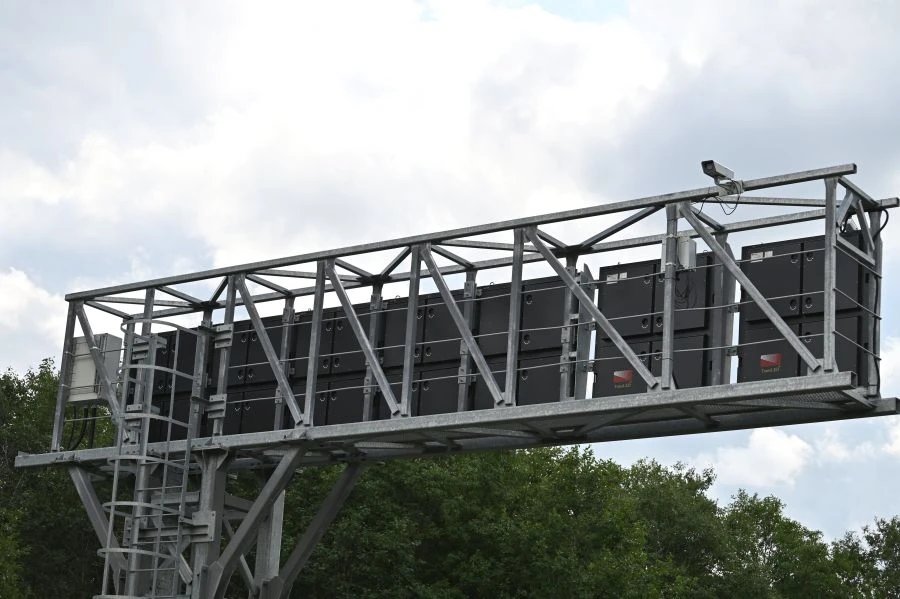

Dynamic information board (DIB) is an electric optoelectronic device for information, signalling, safety and traffic control for highways of all categories, lanes and speed modes, in and out of settlements, railways, tramways, inland waterways, parking facilities, ports and aerodromes. DIT complies with GOST R 52289-2019, GOST R 52290-2004, GOST R 56350-2015, GOST32865-2014, has a certificate of conformity and technical specifications approved by the Federal Centre for Road Traffic Safety of the Ministry of Internal Affairs of Russia. DIT provides the ability to display text messages and pictograms of road signs to inform drivers of vehicles about road traffic conditions depending on the intensity of traffic flows, accidents, meteorological situation, road construction, repair or maintenance work in accordance with predetermined scenarios, as well as other messages.

Specifications

Designation

TransLED EMP 20C

Compliance with regulatory documents

GOST R 52289-2019, GOST R 52290-2004, GOST R 56350-2015, GOST 32865-2014, Certificate of Conformity No. 04IDU101.RU.S03297, technical specifications RCGE.676657.004TU, approved by the Federal Centre for Road Safety of the Ministry of Internal Affairs of Ru

General data

DITs can operate independently through road stations, as well as be integrated into ADMS through the manufacturer's protocol and provide operation in accordance with the specified algorithms and scenarios.

Visualization surface parameter by width

1280...11520 mm

Parameter of visualization surface by height

960...1920 mm

Overall dimensions of the equipment in width

1400...11640 mm

Overall height dimensions of the equipment

1080...2040 mm

Weight of equipment

240...1200 kg

Display area

Image format and number of display elements (pixels) in the matrix: 160 x 80 = 12,800 pixels. Full matrix scoreboard. Orthogonal uniform matrix. Pitch of display elements: 20 mm

Classification of colometric parameters according to GOST 32865-2014, GOST 56350-2015

Angle of view in the vertical plane, at which the brightness of the LED, equal to 50% of the nominal axial brightness, is maintained, from 0 degrees to minus 5 degrees.

Protection against electric shock, GOST 12.2.007.0-75

Not less than class I

Protection against external influences GOST 14254-2015

IP code

Product resistance to contamination

Product resistance (pollution class) to electrically conductive pollution or dry non-conductive pollution which becomes conductive when moisture condensation is applied: D3.

Power supply

Designed to operate from single- or three-phase industrial AC mains with frequency from 49 to 51 Hz in the range of supplying phase voltages from 191 V to 253 V. Power consumption in operating mode from 220/380V network, not more than

Equipment operation

Designed for operation in the open air with set values of ambient air temperature from minus 40 degrees Celsius to plus 60 degrees Celsius and relative humidity of 95% in conditions of atmospheric pressure from minus 40 degrees Celsius to plus 60 degrees C

Data transfer

Management interface: Ethernet 10/100 Base-T

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
