Available for Import

Dust Collector Filter FPU - Designed for Air Quality Improvement

Special Purpose Equipment

Manufacturer: GAZPROM VNII GAZ LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

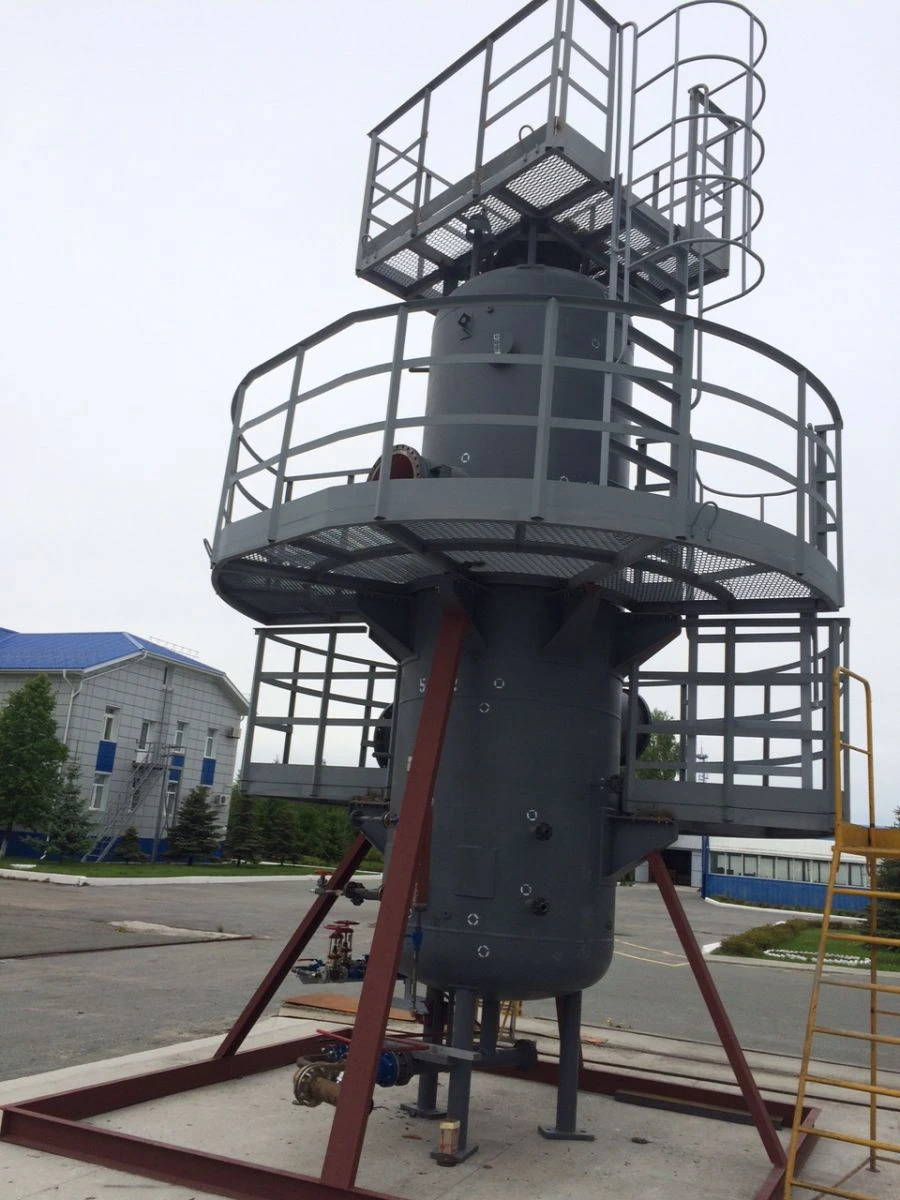

The filter-dust collector is a part of the dust collector unit and is designed to clean natural gas from mechanical impurities and dripping liquid. The apparatus is made in vertical design, is a cylindrical shell with spigots for connection to pipelines, equipped with separation modules and multicyclones. The apparatus is designed for two-stage (by fractional composition) removal of solid mechanical impurities and dripping liquid: in the first stage - by multicyclones, in the second stage - by separation modules.

Specifications

Weight, not more

34000 kg

Service life, at least

33 year

Working pressure, not more than

9.8 MPa

Operating medium temperature

2...13 °C

Design wall temperature

80 °C

Mode of operation

continuous

Operating medium (inlet)

Natural gas, liquid condensate, mechanical impurities, water with methanol or DEG

Capacity

15.9

Estimated number of loading cycles, max.

10000

Save Your Time

Share your requirements for a quick response!

Looking for

Quantity

Your mobile

Instant response in 15 minutes

Best wholesale prices guaranteed

Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
