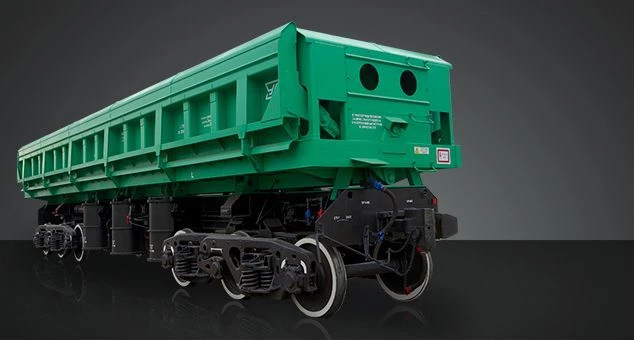

Dump wagon (dumpcar) for mechanised loading, unloading and transportation of bulk and lump cargoes model 33-5170.

Rail Dump Wagons

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Dumpcar is designed for mechanised loading, unloading and transportation of bulk and lump cargoes on mainline railways, tracks of industrial organisations, construction, open-pit mining of 1520 mm gauge of the Russian Federation. Dumpcar should be manufactured in UHL version of placement category 1 according to GOST 15150-69 to ensure operational reliability in the ambient air temperature range from minus 60°? to plus 50°?.

The dump truck is unloaded to either side of the railway track by tilting the body by 45° with the help of pneumatic cylinders suspended on the lower frame, three on each side.

Technical Specifications

Type of product according to PP RF 616	Dumpcars dump cars)
Number of axles	6 pc
Maximum design static load from wheelset on rails, kN (tf)	216 (22)
Static linear load, kN/m (tf/m)	86,13 (8,78)
Geometric volume of the body	44
Length of the dump truck along the coupling axes of the coupling couplers	15036 mm
Base for dump truck	9340 ±5 mm
Body dimensions inside	- length at floor level 12978; - width 2580; - height 1271**. mm
Height from level of rail head to top strapping	3383+45-35 mm
Body tilt angle at unloading, degree, not less than	45 °C
Angle of fracture of the side in relation to the body, deg.	3-11 °C
Working pressure in cylinders at unloading, not more than	0.7 MPa
Number of tilt cylinders	6 pc
Dimension according to GOST 9238	- 1-T bodies; - 02-VM bogies
Design speed	100
Permissible operational speed on industrial transport tracks, km/h, not more	- empty 70; - loaded 40.
Design impact load	3 tonnes from a height of 3 m on a backfill of at least 300 mm
Payload	80 t
Tare weight	51 t
Minimum permissible tare weight in operation	47.96 t
Minimum curve radius for single dump truck	60 m
Body width	3092 mm
Height of coupler axis from rail head level	1040...1080 mm
Rolling cart model	18-522A according to TU 3183-021-07518941

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
