Dump Semi-Trailer 4589RB for Bulk Cargo Transport

Available for Import

Dump Semi-Trailer 4589RB for Efficient Bulk Cargo Transport

Versatile Vehicle Trailers

Manufacturer: MEGATRON LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Semi-trailer-dumper 4589RB, on axle unit OOO "MegaTron": MT-2900006-1950, MT-2900034-1850, MT-2900034-2050, MT-2900006-195 Dump semi-trailer 4589RB, on axle unit OOO "MegaTron": MT-2900805.1410.3-1850, MT-2900805.1410.3-1950, MT-2900805.1410.3

Description

The tipper semi-trailer is designed for transporting bulk construction, industrial and agricultural cargoes (grain carrier). The platform is a metal tipper of oval cross-section with backward unloading or rectangular cross-section, with a hydraulic mechanism for lifting the load box (hydraulic cylinders). Tipping mechanism of the platform is hydraulic with pneumatic control from the cab.

Coupling pin 2 or 3.5 inches, support device JOST or GF (Germany) with two-speed drive. Trailer suspension is spring or pneumatic. At the customer's request semi-trailers can be equipped with single or double-slope coupling.

- Braking system: - working: with pneumatic drive, made on two-wire system with ABS or EBS WABCO - parking: spring energy accumulators - availability of hand brake - Frame: - Welded, with two spars made of I-beams of variable cross-section, made of high-strength steel.

Specifications

Type of product according to PP RF 616

Trailers (semi-trailers) for cars and trucks, motorcycles, scooters and quadricycles

Additional equipment

* 3.5 inch kingpin * lifting axles * swivel axles * extra spare tire * double tire on request * winch * water tank * hand wash * 11.00r22.5 tires (double tire) * all wheel disc brakes * tie downs

Equipment

pneumatic suspension kingpin 2 inch toolbox with sip, tool box, plastic fenders, tires 385/65r22,5, braking system with abs or ebs system, drum type brakes on all wheels, chocks, awning frame with winding system

Number of axles/tyres

3/6-3/12 pcs

Axle load (1st / 2nd / 3rd)

4-18/4-18/4-18 t

Load on the SSA

2...36 t

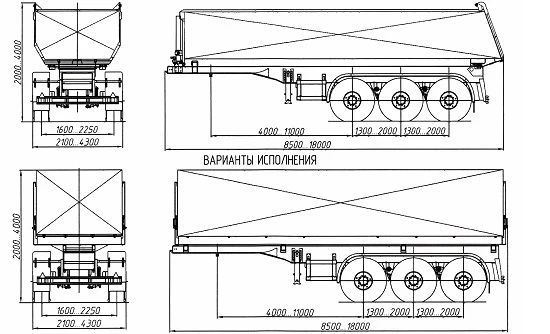

Overall dimensions

8500-18000?2100-4300?3000-4000 mm

Curb weight

3...25 t

Payload

11...65 t
