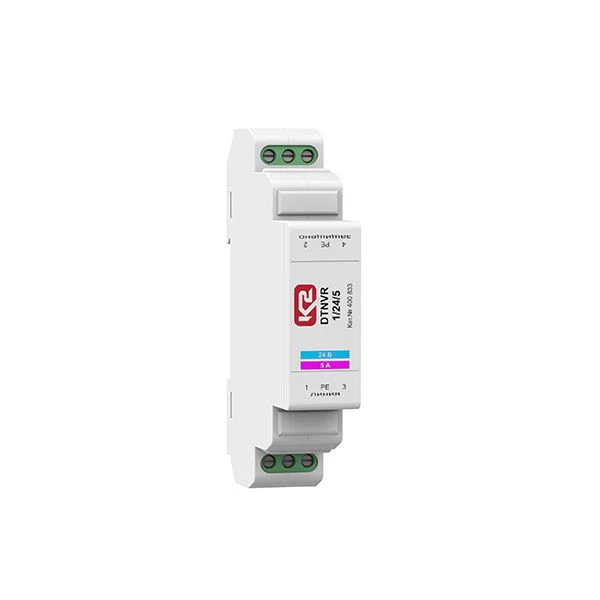

DTNVR 1/24/5 (LT) surge protection device, cat.no.400 000.

UZIP series DTNVR */**/5 (LT), TU 3428-002-79740390-2007 are designed to protect the equipment of distributed networks of industrial automation equipment (ACS, ASCUE, etc.), digital data transmission interfaces, digital data transmission interfaces, etc., as well as for the protection of equipment of distributed networks of industrial automation equipment.), digital data transmission interfaces, signal lines of control and measurement systems, as well as for protection of secondary power supply circuits, etc. from impulse overvoltages (lightning protection, protection against electrostatic discharges, etc.) within 0B - 2 lightning protection zones in accordance with GOST R IEC 62305-1-2010. Rated current IL = 5 A. Number of protected conductor pairs 1, connection by means of screw terminals 4,00 mm. Capable of passing rated discharge current In(8/20) from 2 to 8 kA. Data transfer rate up to 1 Mbit/s.
