Driver's chair KL-7500M.0-02-01U

Rail Locomotive Components

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

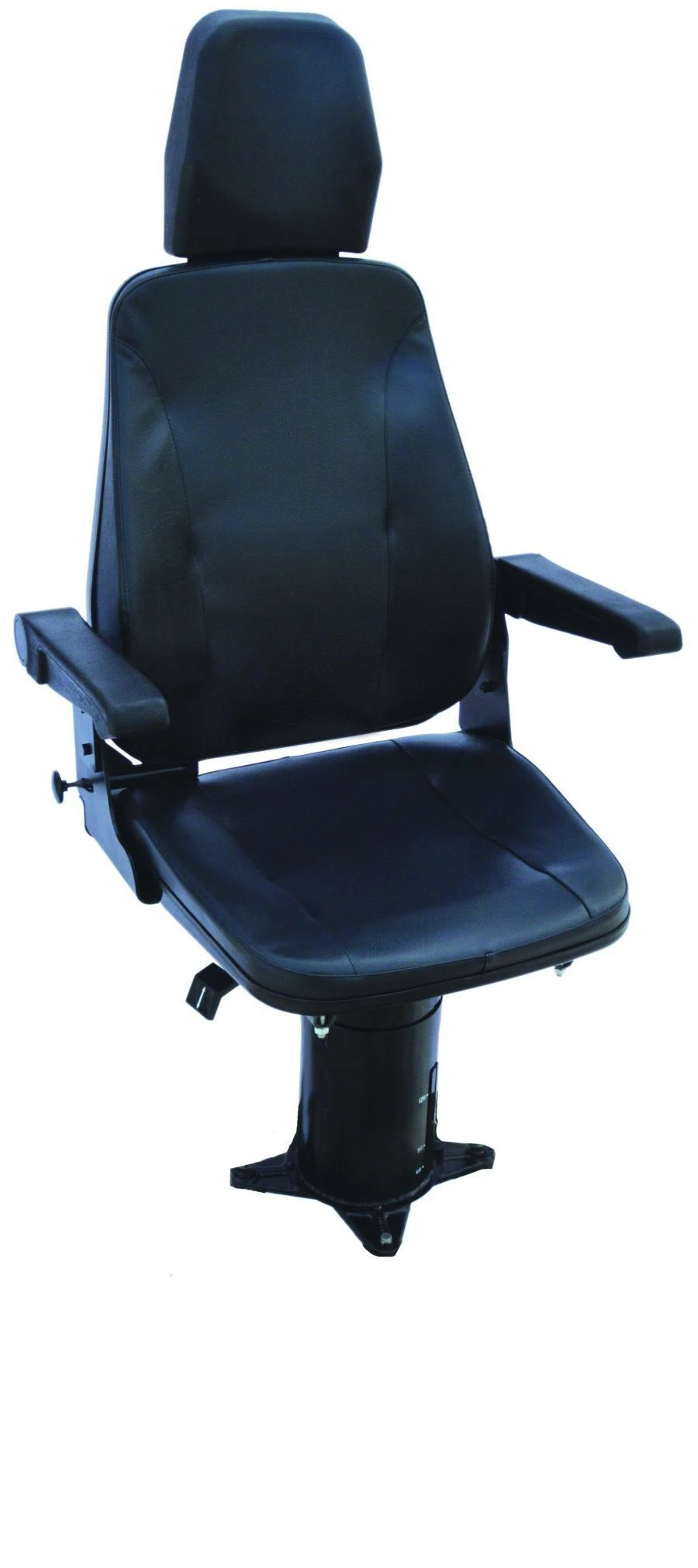

Machinist's chair KL-7500M.0-02-01U is designed to provide an optimal posture when performing functional duties of a machinist at the workplace, as well as to ensure the possibility of working sitting and standing, rest and quick leaving the workplace.
The chair is designed for installation in cabins of locomotive, motor-car and special railway rolling stock drivers.
The chair consists of backrest, seat, armrests, headrest and vibration-absorbing suspension.
Climatic execution of the chair is U3 GOST 15150-69..

Technical Specifications

Type of product according to PP RF 616	Component spare parts) of railway locomotives, not having independent groupings
Type	Driver's chair
Weight	46 kg
Overall dimensions	520...750 x 580...640 x 1290...1390 mm
Rotation around the axis	360º in 60º increments
Assignment	The chair is designed for installation in the cabs of locomotive drivers, motor-car and special railroad rolling stock drivers
Adjustment of suspension stiffness according to driver weight	60...120 kg
Distance between the inner edges of the armrests when extended	580 mm
Distance between the inner edges of the armrests when the armrests are in the sliding position	460 mm
Armrest inclination from horizontal, degree	5
Backrest inclination from horizontal, degree	95...115 in increments of 5
Lumbar support adjustment range	60 mm
Vertical movement of the seat	100 in increments of 33 mm
Horizontal movement of the seat in relation to the suspension system	200 in increments of 25 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
