Drinking Water Preparation System for Natural Freshwater - Akvalid VU Application

Industrial Water Filters

Manufacturer: Aquilid LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

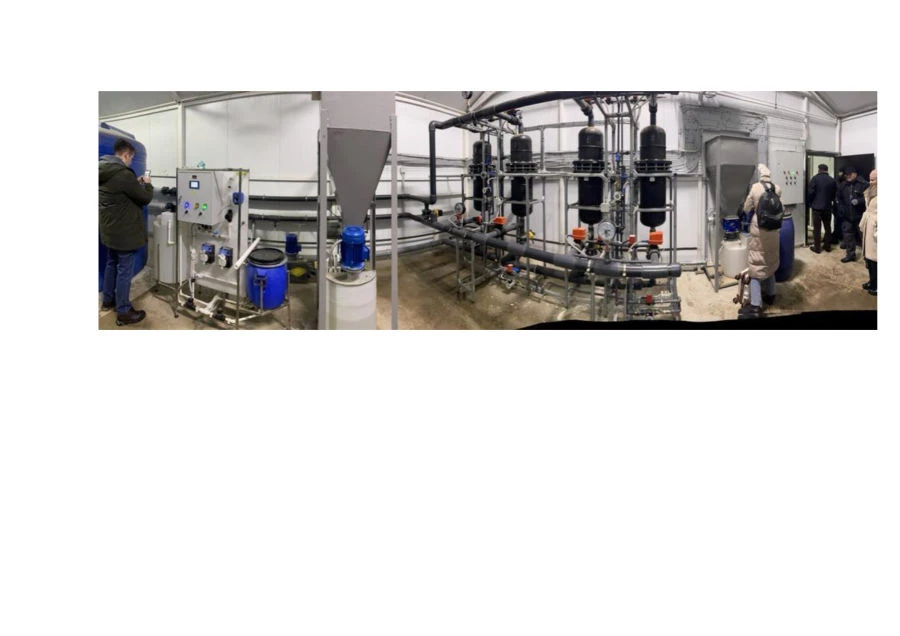

The unit is designed for disinfection, decolourisation, filtration of fresh water up to drinking water level. It consists of a pre-filtration unit with simultaneous supply of sodium hypochlorite, prepared on site in the electrolysis unit, for disinfection and decolouration, filtration unit on wire filtering elements LLC "Akvalid", which are compressed by the direct and uncompressed by the reverse flow of water. A layer of domestic sorbent is washed onto the elements for filtration fineness up to 1 micron and reduction of water hardness and salt content.

The layer is changed automatically. Sorbent is fed into the filtration unit in a constant mode to prevent sticking of the filtering layer. After filtration, sodium hypochlorite is added to the system to ensure the required residual chlorine content according to the norms of SanPiN1.2.3685-21.

The advantages of the technology are the absence of imported membranes, coconut coal; no need for coagulation, flocculation, sedimentation of impurities.

Specifications

Nominal capacity

500

Assigned resource

90000000

Dimensions of treated water tank DxH, mm,

15000x10000 mm

Dry weight of water treatment unit

5600 kg

Purified water pressure at the system outlet

4 MPa

Life before overhaul

88000000

Peak water flow rate from the storage tank

600

Mark

WU-12000

Average treated water capacity

490

Height

2800 mm

Storage capacity

1500

Drainage water flow rate

Installed electrical capacity of the system

30 kW

System dry mass

6500 kg

Length

120000 mm

Ambient temperature during storage and operation

4 °C

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
