Available for Import

Drinking water preparation station SPPV-2

Water Purification Equipment

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

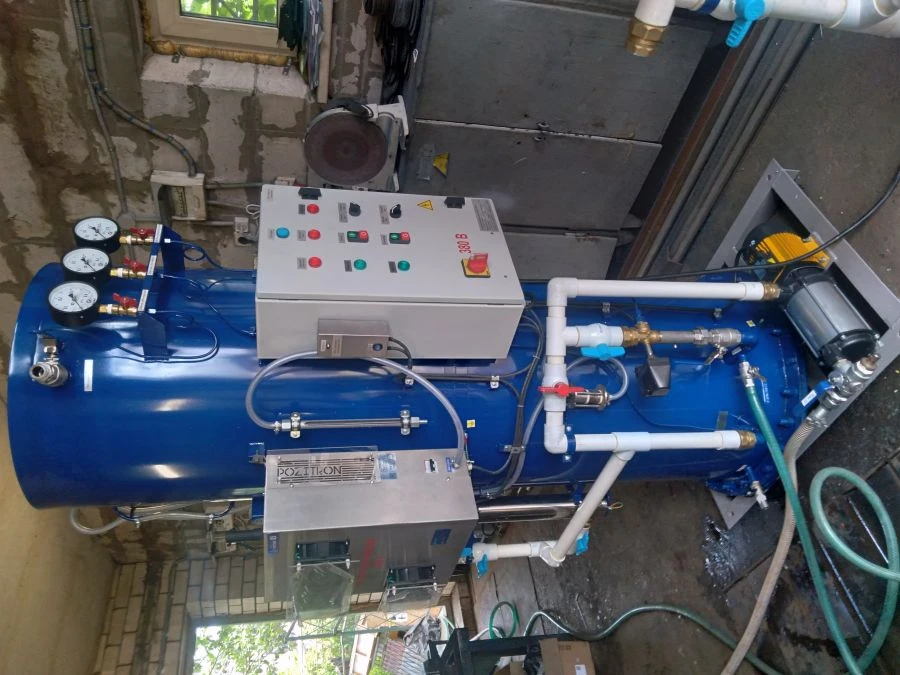

Station SPPV-2 drinking water capacity of 0,5-2,5 cubic metres per hour. The stations are designed for installation on all types of river fleet vessels, vessels of mixed navigation and on shore facilities.
The stations are manufactured in climatic version "U" according to GOST 15150-69 (area with moderate climate, with ambient air temperature from plus 40 degrees C to minus 40 degrees C), placement category "4".
The stations prepare drinking water meeting the requirements of GOST 29183 91 , SanPiN 2.1.4.1074-01 and Unified Sanitary and Epidemiological and Hygienic Requirements for Goods Subject to Sanitary and Epidemiological Surveillance (control) from any river, lake water and other surface and underground sources by its purification, disinfection and deodorisation.
The station consists of three main parts: pre-zoning, filtration and UV radiation (hereinafter referred to as UVL).

Specifications

Height 2100 mm

Length 1000 mm

Width 900 mm

Average treated water capacity 2

Peak flow rate of treated water 4

System dry mass 900 kg

Storage capacity 10

System power consumption 1 kW

Drainage water flow rate 1

Installed electrical capacity of the system 1 kW

Permissible loads on the system enclosure 20

Life before overhaul 100000

Assigned resource 200000

Ambient temperature during storage and operation 0...45 °C

Peak water flow rate from the storage tank 5

Pressure in the source water path at the system inlet 1 MPa

Dimensions of treated water tank DxH, mm, any mm

Dry weight of water treatment unit 900 kg

Performance 2

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
