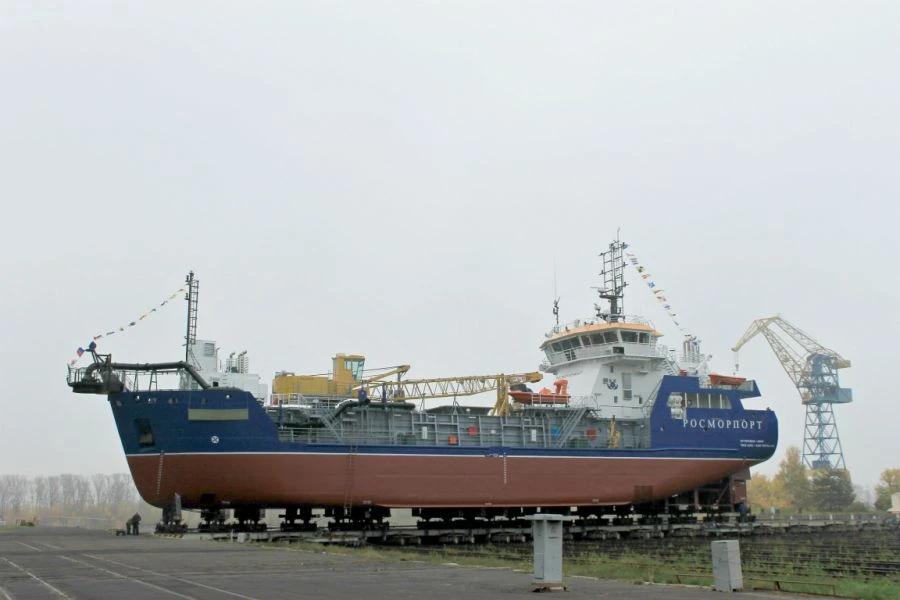

Dredging vessel Project TSHD1000

Dredging vessel of TSHD1000 project. The dredging vessel is equipped with a draggable dredging device (dredge receiver). The bilge is open at the top (without hatch closures) and has coamings and a splash shield along its entire length. A hydraulic loosening system is provided for complete and qualitative unloading of soil from the hold. The vessel is equipped with an adjustable hold overflow system with a bottom location. Unloading of soil to the underwater dump is carried out through opening bottom doors. To dispense and refill the cargo from the hold to the shore by means of self-unloading system with the use of cargo pump, there is a bow swivel connection for connection to the shore or floating slurry pipeline, as well as unloading of the cargo by rainbow method with the distance of ejection not less than 60 metres. A grapple device can be fitted. Dredging equipment control is carried out from the bridge, dredging equipment positioning system is provided.
