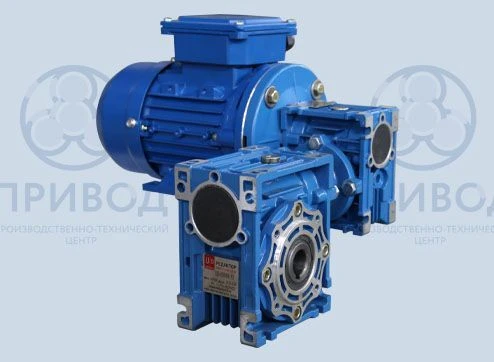

Double stage worm gearmotor DRV

Double-stage worm gearmotors of DRV series are characterised by a modernized
The DRV series worm gearmotors are characterised by a modernised, universal housing that allows the gear unit to be mounted in any position. Gearbox
is manufactured using injection moulding technology. Thanks to its simple and robust
Thanks to its simple and robust design, it offers high performance and quiet operation.
It is used in electric drives requiring low rotational speed with high torque.
Model: DRV
Size: 30/40 - 30/50 - 30/63 - 40/75 - 40/90 - 50/110 - 50/130
Gear ratio: "i" = 300:1 - 3200:1
Power: 0.06 - 1.5 kW
Torque: 68 - 2150 Nm
Unit designation
DRV - 040/075 - 3000 - 0.5 - 0.06 B5 - AS1 , where
DRV is a worm gearmotor with two stages;
040/075 - combination of 040 and 075 size gearboxes;
3000 - gear ratio;
0,5 - output shaft speed (rpm);
0,06 - motor power (kW);
B5 - type of flange;
AS1 - mounting position.
