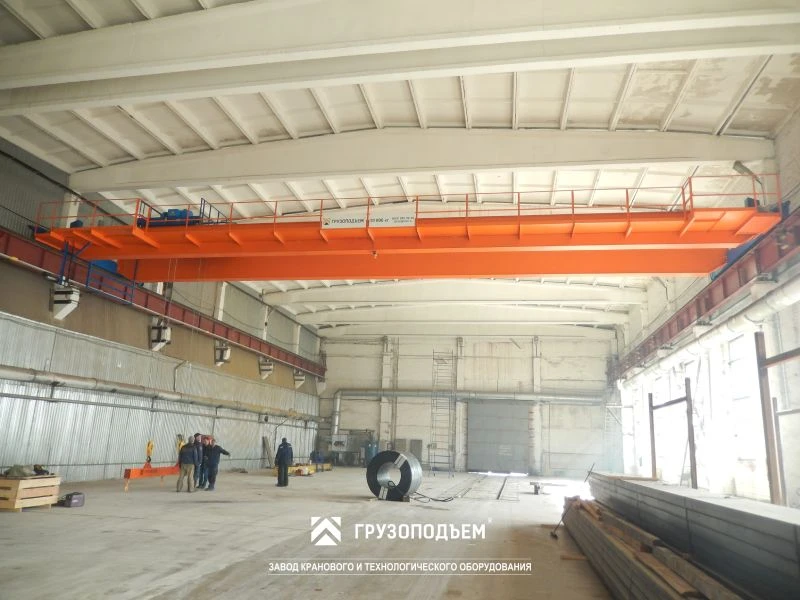

Double girder overhead travelling cranes

The overhead supporting double girder crane is designed for lifting and moving various loads weighing up to 100.0 tonnes. The design is characterised by increased strength due to the presence of two parallel bearing beams. Double girder overhead travelling cranes are widely used practically in all branches of industry: in metallurgy, logging production, at sea ports and in other spheres, performing loading and unloading works both in closed premises and in open spaces. The temperature range of their use should not exceed the values from -40 ° C to +40 ° C. The main characteristics of produced overhead travelling cranes supporting double girder: g / n up to 100.0 tonnes, span length up to 34.5 m, drive type electric, lifting height up to 36.0 m, mode of operation according to ISO 4301/1: A4 and above, the degree of protection of crane movement mechanisms: IP 54, crane version: OPI / PBI / VZI. By default the equipment is painted in orange colour RAL 2004. Other colours are available on request.
