Available for Import

Double-acting piston hydraulic cylinders with single-acting rod: D pistons from 25 to 400mm. , D of the rod from 8 to 300 mm, op

Double-Acting Piston Cylinders

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

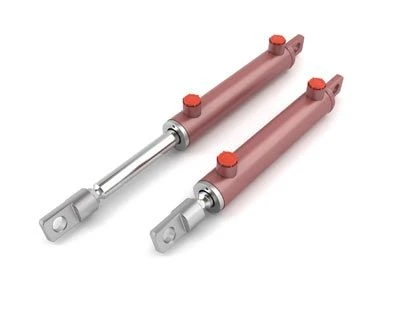

Hydrocylinders piston double-acting with single-sided rod: D pistons from 25 to 400mm. , D rod from 8 to 300 mm, working pressure from 16 to 70 MPa, V rod displacement up to 12 m/s, range t from -50 to +200 ° C, working stroke up to 15000 mm.

Technical Specifications

Stem	8-300 mm
Dimensions	25-400 mm
Designation	Operating temperature
Hydraulic cylinder stroke	15000 mm
Piston diameter	25...400 mm
Rod diameter	8...300 mm
Stroke speed	up to 12
Maximum working pressure	70 MPa
Operating temperature	-50 to +200 °C

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.

Shipping & Payment Information

Shipping Terms

FOB: Novorossiysk, Russia
CIF: Available to major ports worldwide
EXW: Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination)
Air freight: 14-21 days (for urgent orders)
Production lead time: 30-90 days (depending on order size)

Payment Methods

Letter of Credit (L/C)
Wire Transfer (T/T)
Escrow Services

Order Minimums

We work with orders starting from 1 container
You can mix different products in one container
Volume discounts available for larger orders

Customs & Documentation Support

We provide comprehensive assistance with all export documentation, customs clearance, and logistics arrangements. Our team has extensive experience facilitating international trade with businesses in Africa, Middle East, Asia, and Latin America.
