Display module 1??.?.286.32-9.016

Manufacturer:
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Key Highlights

  • Made in Russia - engineered for durability
  • Suitable for challenging environments
  • Lower cost of ownership than European alternatives
  • Bulk orders available with volume discounts
  • Documentation and customs clearance assistance provided

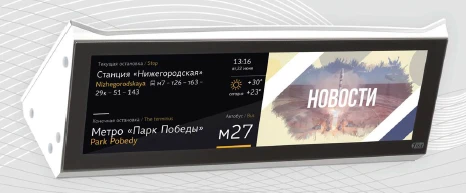

Display module - equipment designed for information provision of passengers of urban public transport by displaying audiovisual information and video content. This type of DM includes 3 models: Display module main: is an independent, automatic device that processes incoming data from external systems and forms a stream of data with the subsequent display on the screen. Master display module: is a modification of the main one. The difference of this product is the ability to transfer the generated data stream to the slave display module. Master display module: is an additional display module that works in tandem with the master. It is not an independent device, as there is no possibility to receive incoming data and form a data stream from them for displaying on the screen. The formed data stream is received from the master.

Technical Specifications

Housing type Vandal resistant
Matrix type LED
Screen diagonal 28.6
Screen resolution, not less than 1920?540
Screen aspect ratio 32:9
Matrix brightness, not less, cd/m2 1000
Maximum number of colors 16.7
Screen size (visible area), width 700 mm
Screen size (visible area), height 200 mm
Viewing angle 175
Operating voltage 12...36 V
Power consumption 55 W
Ambient temperature -30...50 °C
Degree of enclosure protection IP54
Supported audio formats MP3, WAV
Supported video formats DivX, AVI, MPEG4, Xvid
Supported photo formats JPG, JPEG
Weight 16 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
