Display module 1??.?.215.16-9.001

Manufacturer:
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Key Highlights

  • Made in Russia - engineered for durability
  • Suitable for challenging environments
  • Lower cost of ownership than European alternatives
  • Bulk orders available with volume discounts
  • Documentation and customs clearance assistance provided

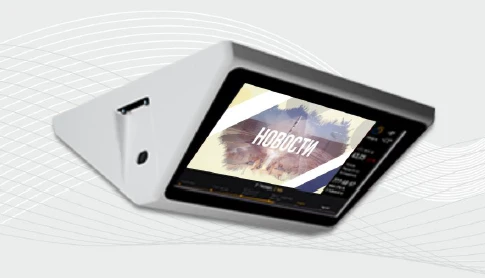

Display module (hereinafter referred to as module, equipment, product) - equipment designed to provide information to passengers of urban public transport by displaying audio-visual information and video content. It is produced in 3 modifications - main, master (-01), slave (-02). The main display module is an independent, automatic device that processes incoming data from external systems and forms a data stream with its subsequent display on the screen. The master display module is a modification of the main one. The difference of this product is the ability to transfer the generated data stream to the display module slave. The slave display module is an additional display module that works in tandem with the master. It is not an independent device, as there is no possibility to receive incoming data and form a data stream from them for displaying on the screen. The formed data stream is received from the master.

Technical Specifications

Housing type Vandal resistant
Matrix type LED
Screen diagonal 21.5
Screen resolution Not less than 1920 x 1080
Screen aspect ratio 16:9
Matrix brightness Not less than 1000 cd/m2
Maximum number of colors 16.7
Screen size, width 475 mm
Screen size, height 265 mm
Viewing angle 175
Operating voltage 12...24 V
Power consumption 72 W
Ambient temperature -30...50 °C
Degree of enclosure protection IP54
Supported audio formats MP3, WAV
Supported video formats DivX, AVI, MPEG4, Xvid
Supported photo formats JPG, JPEG
Type of antenna connectors SMA
Average MTBF, not less than 30000
Average service life 3 a
Mass, 18 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
