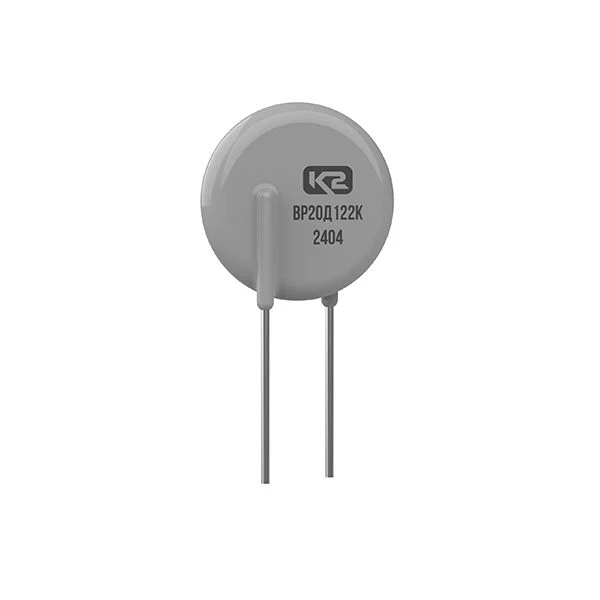

Disk Varistor 725V 6.5kA for Effective Surge Protection - VR20D122K

Manufacturer: HAKEL OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

VR20D122K - KVS series varistor, 725 V, 6.5 kA (8/20), zinc-oxide, disc-shaped with unidirectional (radial) wire leads, protected, uninsulated.0

Classification rated voltage at 1 mA current

1200 V

Maximum AC operating voltage

725 V

Maximum continuous operating voltage

975 V

Permissible amplitude of a single current pulse (8/20 µs)

6500 A

Maximum pulse energy (2 ms)

280

Operating temperature range

-60...85 °C

Maximum disk diameter

23 mm

Maximum disk thickness

8 mm
