Available for Import

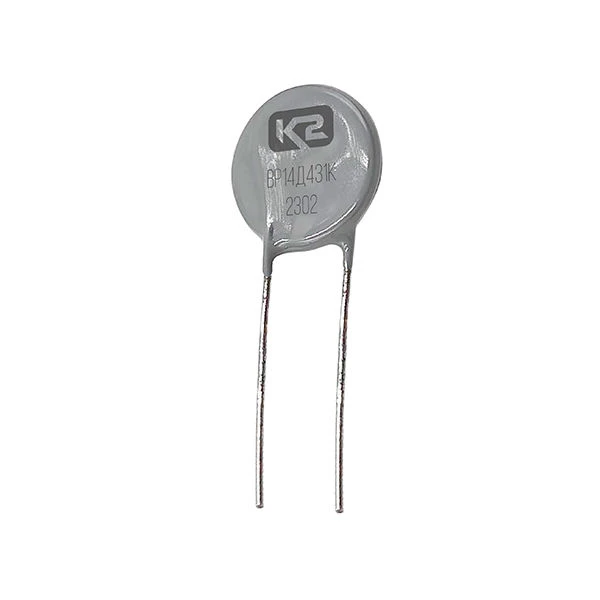

Disk Varistor VR14D431K for Surge Protection Applications

Manufacturer: HAKEL OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

VR14D431K - varistor of KVS series, 275 V, 4.5 kA (8/20), zinc-oxide, disc-shaped with unidirectional (radial) wire leads, protected, uninsulated.

Operating temperature range

-60...85 °C

Permissible amplitude of a single current pulse (8/20 µs)

4500 A

Maximum continuous operating voltage

350 V

Maximum disk thickness

8 mm

Maximum disk diameter

17 mm

Maximum pulse energy (2 ms)

77.4

Maximum AC operating voltage

275 V

Classification rated voltage at 1 mA current

430 V
