Disk Varistor VR20D220K for Overvoltage Protection Applications

Manufacturer: HAKEL OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

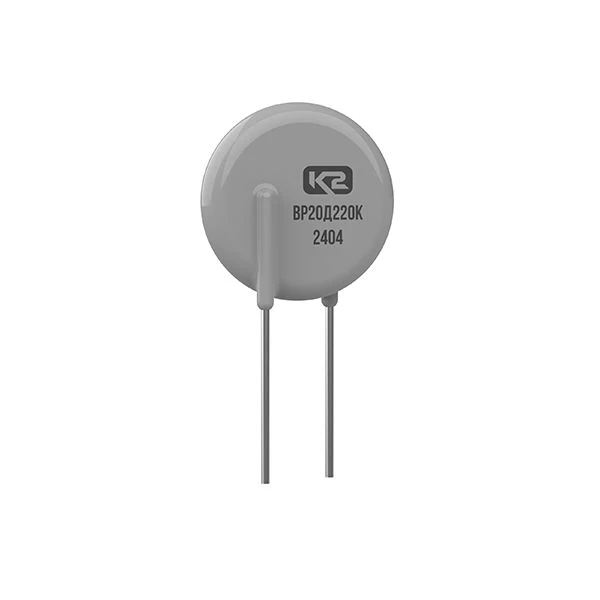

VR20D220K - varistor of KVS series, 14 V, 2.0 kA (8/20), zinc-oxide, disc-shaped with unidirectional (radial) wire leads, protected, not insulated.

Maximum disk thickness

8 mm

Maximum disk diameter

23 mm

Operating temperature range

-60...85 °C

Maximum pulse energy (2 ms)

6.6

Permissible amplitude of a single current pulse (8/20 µs)

2000 A

Maximum continuous operating voltage

18 V

Maximum AC operating voltage

14 V

Classification rated voltage at 1 mA current

22 V
