Available for Import

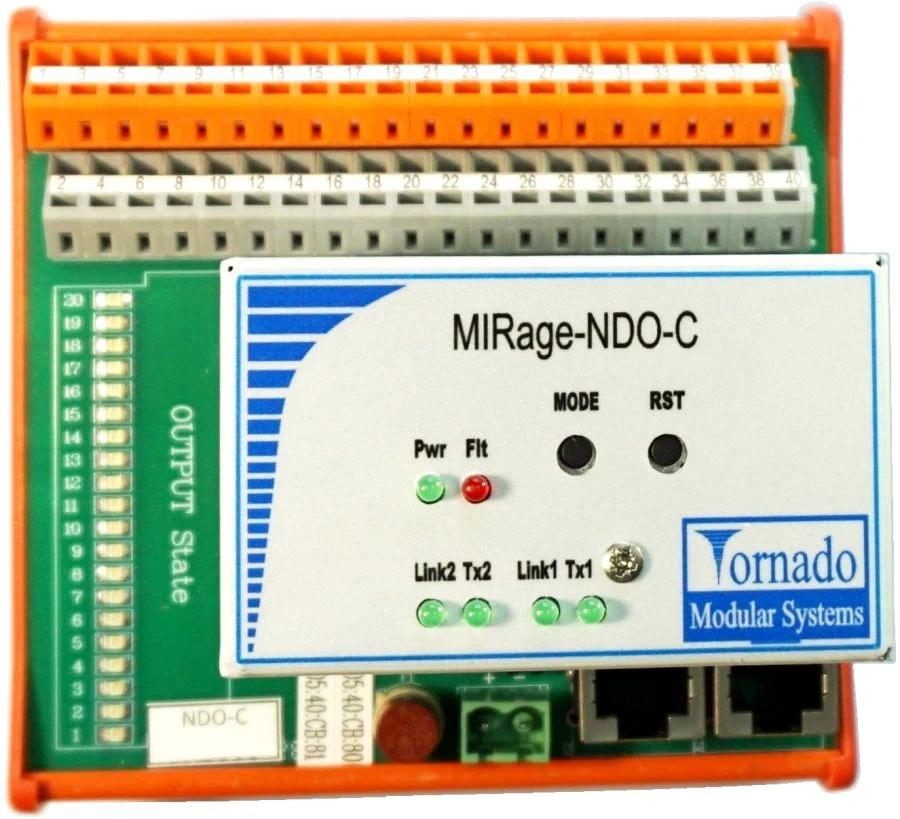

Discrete Output Device for 20 Signals - MIRage-NDO-C for Control Systems

Automatic Control Devices

Manufacturer: Tornado Modular Systems LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The MIRage-NDO-C devices are designed to generate low-power discrete signals of 0-24 VDC levels as part of distributed information and control systems. Control of the states of signals of discrete outputs is carried out through a redundant digital interface Ethernet 10/100 over twisted pair using the ModBus protocol. MIRage-NDO-C devices have 20 discrete output channels (DC). The output signal conditioners are powered from a 24 V source, from which the device itself is powered. DC have a group galvanic isolation from the system part.Devices MIRage-NDO-C are designed for the creation of automated process control systems (APCS) in various industries.

Specifications

Number of discrete output channels

20 pcs

Type of output signals

Emitter output

External supply voltage (+/- 15%)

24 V

Consumption current, max.

930 mA

Operating temperature range

-25...70 °C

Wago terminal block, conductor cross-section up to

2.5 mm²

Weight, not more

450 year

Overall dimensions

114x108x111 mm

Galvanic insulation

Group

Data exchange protocol

Modbus TCP/UDP slave

Data transfer rate

Interface type

Ethernet 10/100BaseTX - 2 channels

Mechanical design

DIN rail mounting

Request response time at 100 Mbit network speed, no more than

Discrete signal levels

0-30 IN DC

Maximum output current of the digital output

40 mA

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
