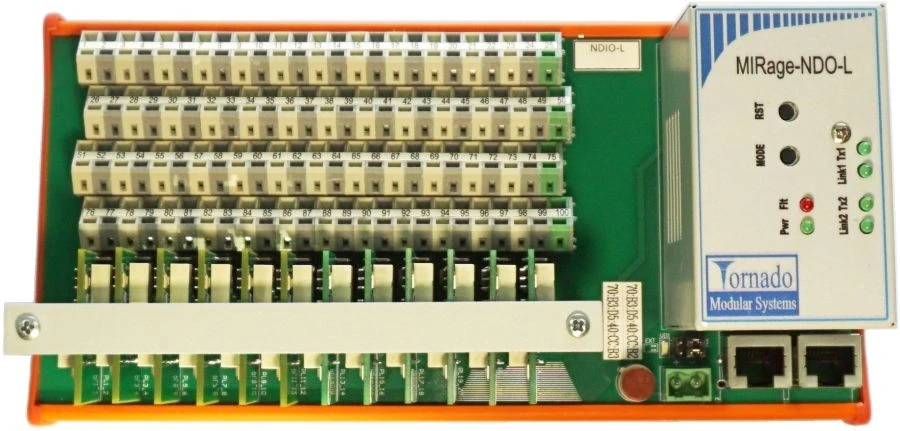

Discrete output device. 24 signals up to 2 A at 50 V AC/DC, individual galvanic isolation (MIRage-NDO-L).

Automatic Control Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Devices MIRage-NDO-L are designed to output discrete signals up to 2 A at 50 V AC/DC in the construction of distributed information and control systems. The control commands are sent to the discrete outputs via a redundant digital Ethernet 10/100 twisted pair interface using the ModBus protocol. The MIRage-NDO-L devices have 24 discrete channels (DCs) configured in groups of two. DC have galvanic isolation from each other and from the system part.MIRage-NDO-L devices are designed to create automated process control systems (APCS) in various industries.

Specifications

Maximum current consumption 353 mA

Discrete signal levels 0-50 V (AC/DC)

Request response time at 100 Mbit network speed, no more than 2

Mechanical design DIN rail mounting

Interface type Ethernet 10/100BaseTX - 2 channels

Data transfer rate 100

Data exchange protocol Modbus TCP/UDP slave

Galvanic insulation Individual

Overall dimensions 216x108x111 mm

Weight, not more 800 g

Wago terminal block, conductor cross-section up to 2.5 mm2

Operating temperature range -25...70 °C

Consumption current, max. 80 mA (not including current consumption of submodules)

External supply voltage (+/- 15%) 24 V

Type of output signals Switched relay contacts

Number of discrete output channels 24 pc

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
