Discrete output device. 20 signals up to 40 mA at 30 V DC, without galvanic isolation, control circuit supply (MIRage-N

Automatic Control Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

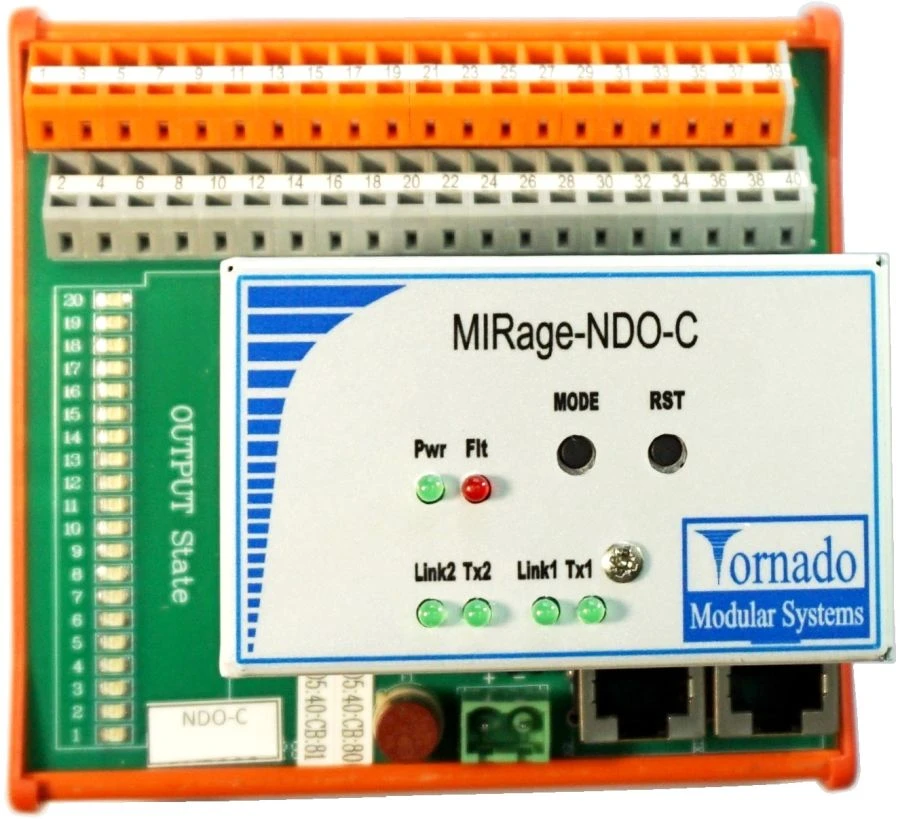

The MIRage-NDO-C devices are designed to generate low-power discrete signals of 0-24 VDC levels as part of distributed information and control systems. Control of the states of signals of discrete outputs is carried out through a redundant digital interface Ethernet 10/100 over twisted pair using the ModBus protocol. MIRage-NDO-C devices have 20 discrete output channels (DC). The output signal conditioners are powered from a 24 V source, from which the device itself is powered. DC have a group galvanic isolation from the system part.Devices MIRage-NDO-C are designed for the creation of automated process control systems (APCS) in various industries.

Technical Specifications

Number of discrete output channels	20 pc
Type of output signals	Emitter output
External supply voltage (+/- 15%)	24 V
Consumption current, max.	930 mA
Operating temperature range	-25...70 °C
Wago terminal block, conductor cross-section up to	2.5 mm2
Weight, not more	450 g
Overall dimensions	114x108x111 mm
Galvanic insulation	Group
Data exchange protocol	Modbus TCP/UDP slave
Data transfer rate	10
Interface type	Ethernet 10/100BaseTX - 2 channels
Mechanical design	DIN rail mounting
Request response time at 100 Mbit network speed, no more than	2
Discrete signal levels	0-30 IN DC
Maximum output current of the digital output	40 mA

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
