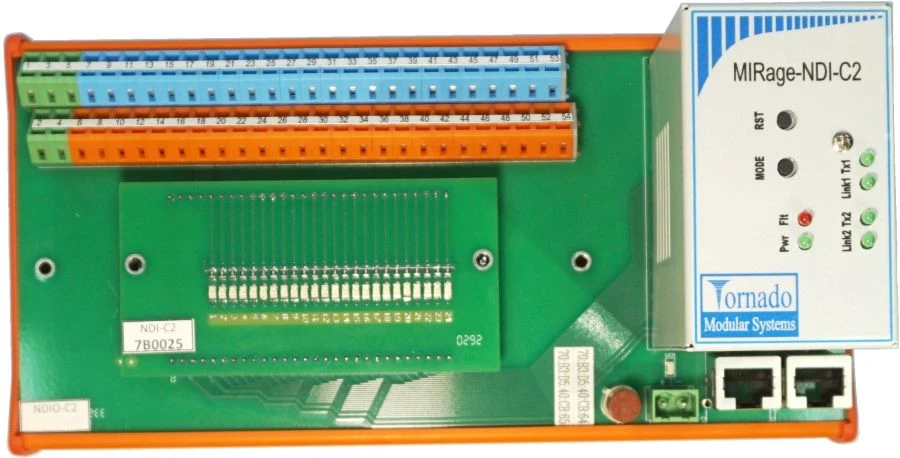

Discrete Input Device with 24 Signals and Galvanic Isolation, MIRage-NDI-C2

Available for Import

Discrete Input Device with 24 Signals and Galvanic Isolation for Control Systems - MIRage-NDI-C2

Automatic Control Devices

Manufacturer: Tornado Modular Systems LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Devices MIRage-NDI-C2 are designed to input discrete signals from sensors such as "dry contact" and "potential output 24 V" when building distributed information and control systems. The devices are designed to read the states of signals of discrete inputs and transmit the values via a redundant digital interface Ethernet 10/100 over twisted pair using the ModBus protocol. The MIRage-NDI-C2 devices have 24 input digital channels (DC) with a common pole. The dry contacts are powered from an external 24 V source. DC have a group galvanic isolation from the system part.MIRage-NDI-C2 devices are designed for the creation of automated process control systems (APCS) in various industries.

Specifications

Number of discrete input channels

24 pcs

Type of input signals

"Dry contact", potential input

External supply voltage (+/- 15%)

24 V

Consumption current, max.

75 mA

Operating temperature range

-25...70 °C

Wago terminal block, conductor cross-section up to

2.5 mm²

Weight, not more

700 year

Overall dimensions

216x108x111 mm

Galvanic insulation

Group

Data exchange protocol

Modbus TCP/UDP slave

Data transfer rate

Interface type

Ethernet 10/100BaseTX - 2 channels

Mechanical design

DIN rail mounting

Request response time at 100 Mbit network speed, no more than

Supply voltage of discrete inputs (+/- 6)

24 V

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
