Available for Import
Discrete input device. 20 signals 24 V DC from sensors of "dry contact" type, without galvanic isolation, sensor power supply
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description

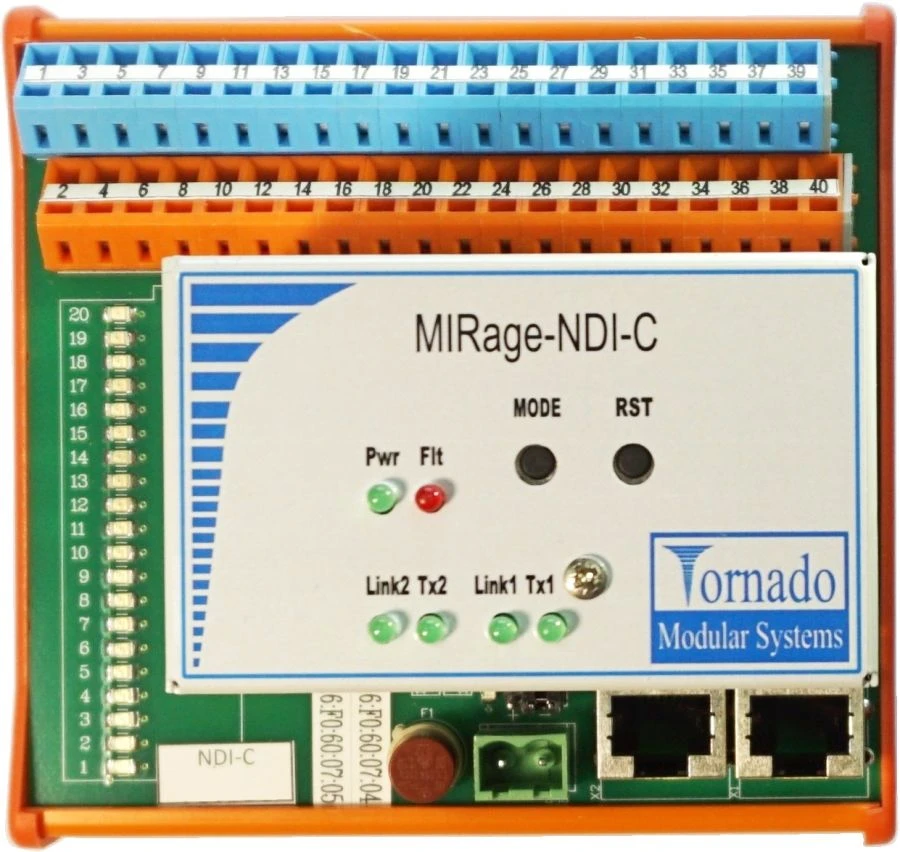

Devices MIRage-NDI-C are designed for input of discrete signals from sensors type "dry contact" in the construction of distributed information and control systems. The devices are designed to read the states of signals of discrete inputs and transfer values through a redundant digital interface Ethernet 10/100 over twisted pair using the ModBus protocol. MIRage-NDI-C devices have 20 discrete channels (DC). The "dry contacts" are powered from a 24 V source, which powers the device itself. DCs have a group galvanic isolation from the system part.MIRage-NDI-C devices are designed to create automated process control systems (APCS) in various industries.
Specifications
Voltage at sensor contacts
24 V
Request response time at 100 Mbit network speed, no more than
2
Mechanical design
DIN rail mounting
Interface type
Ethernet 10/100BaseTX - 2 channels
Data transfer rate
10
Data exchange protocol
Modbus TCP/UDP slave
Galvanic insulation
Group
Overall dimensions
114x108x111 mm
Weight, not more
450 g
Wago terminal block, conductor cross-section up to
2.5 mm2
Operating temperature range
-25...70 °C
Consumption current, max.
170 mA
External supply voltage (+/- 15%)
24 V
Type of input signals
"Dry contact."
Number of discrete input channels
20 pc
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
Share your requirements for a quick response!
Instant response in 15 minutes
Best wholesale prices guaranteed
Direct from manufacturer
Delivery & Payment
Shipping Terms
Delivery Time
Sea freight: 30-60 days (depending on destination)
Air freight: 14-21 days (for urgent orders)
Payment Methods
