Available for Import

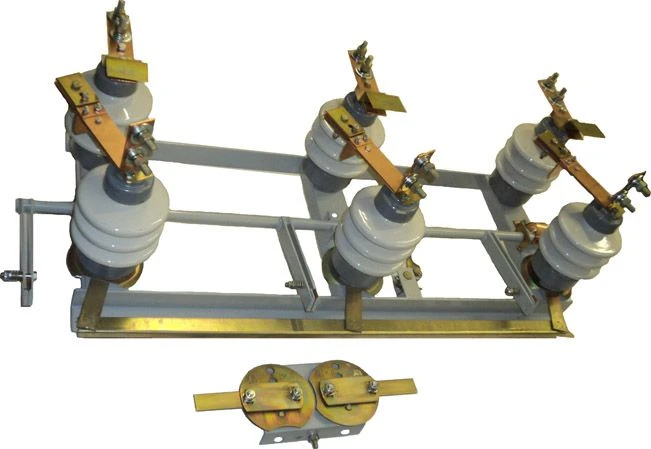

Disconnector RLND-1-10 II/400 UHL1
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description
designed for switching on and switching off de-energised sections of the circuit under voltage, as well as for earthing the disconnected sections by means of earthing switches combined with the disconnector.
Specifications
Designation
RLND-1-10 II/400
Assignment
for switching on and switching off de-energised parts of the electric circuit, which are under voltage, as well as for earthing the disconnected parts by means of earthing switches, combined with the disconnector.
Voltage
10000 V
Length
1115 mm
Width
485 mm
Height
370 mm
Climatic version
UHL1
Highest operating voltage
B1/B8 2100/900 MHz kW
Rated current
400 A
Thermal resistance current
10000 A
Electrodynamic resistance current
25000 A
Permissible pull from conductors in horizontal plane taking into account wind and ice effect
200
External insulation leakage path length
30 cm
MTBF
1000
Weight
45 kg
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
