Disc Harrow Carbon D 8500 for Effective Soil Tillage and Preparation

Disc Harrows

Manufacturer: BLOCK OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

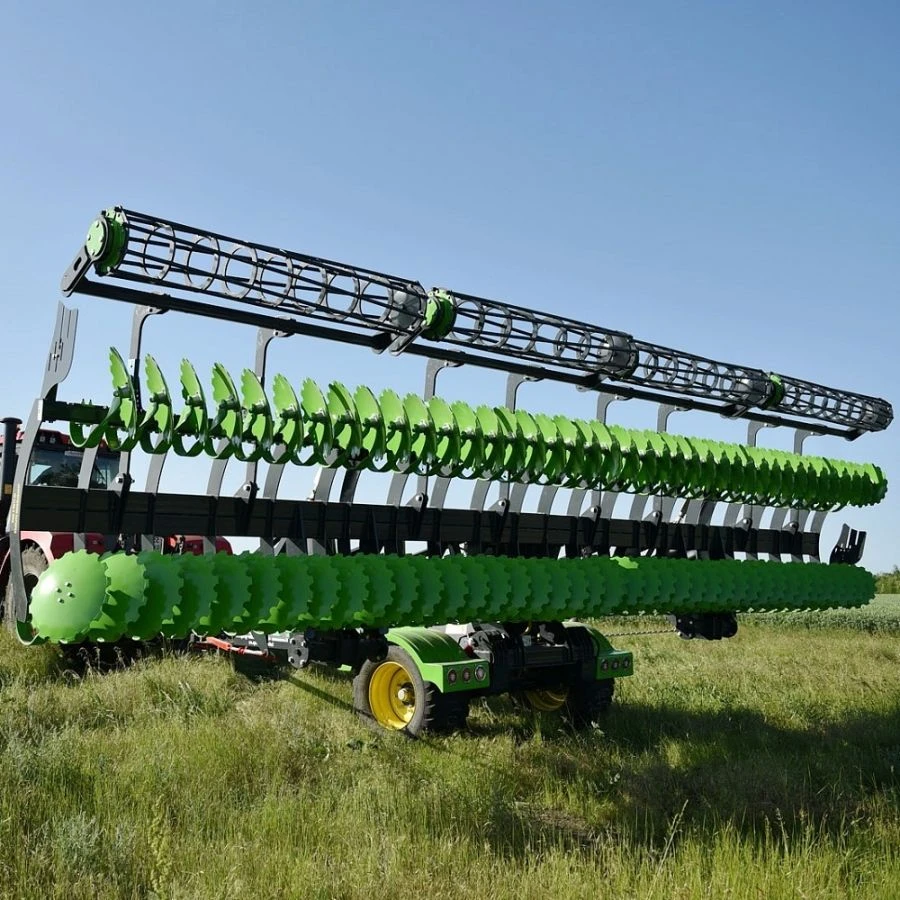

The Carbon D 8500 disc harrow is a semi-trailed machine with two rows of spherical discs mounted on individual spring struts. It is designed to be equipped with a track consisting of rollers. The harrow is equipped with deflectors on the left and right sides of the harrow to prevent the formation of soil ridges between adjacent passes of the machine. The harrow is designed for use in agricultural production in various soil and climatic zones for cultivation of soil not clogged with stones to a depth of up to 15 cm. Working width is 8.5 m, consists of the following main parts: head frame with linkage axle and parking support, central frame to which left and right wings are hinged and two working planes, left and right.

Specifications

Type of product according to PP RF 616

Disc harrows

Distance between rows

1200 mm

Weight

7100 kg

Number of implement rows

2 pcs

Material of working elements

50hgfa steel, 30MnB5 steel

Material of frame structures

09g2s steel, 40x steel

Harrow type

Carbon disk harrows

Working width

8.5 m

Height

1500 mm

Width

8500 mm

Length

9500 mm

Operating speed

Capacity per hour

12.75

Number of working orans

66 pcs

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
