Disc Harrow BD 10.0x3PG with Roller Available for Import

Disc Harrow BD 10.0x3PG with Roller for Effective Soil Cultivation

Disc Harrows
Manufacturer: RADOGOST-MASH LLC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

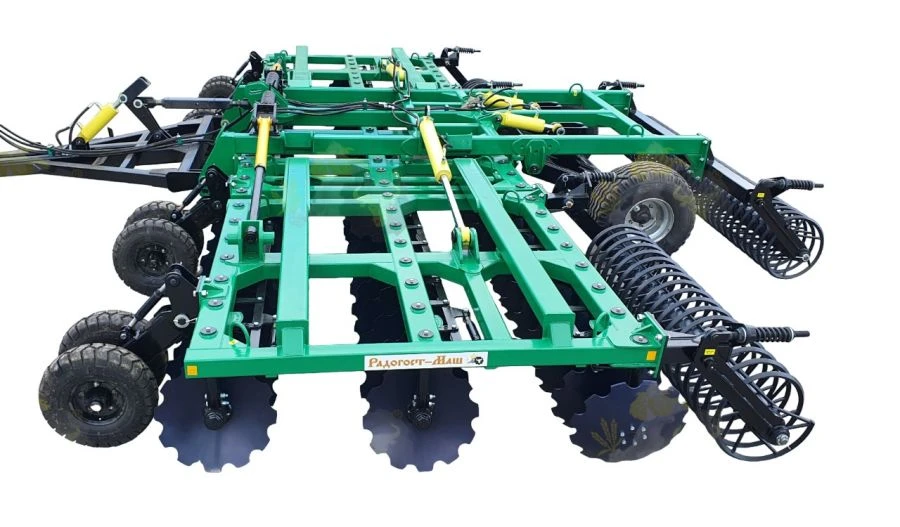

Disc harrow BD 10,0x3PG with roller Frame made of 150x100x6 profile pipe, support beams - 150x100x8 mm. Distance between the posts is 300 mm, between the rows - 1050 mm. Romashka" disc 560x6 mm Lubricated stand 58,5 mm in diameter Serviceable cutting unit, with reinforced axle and 27 mm nut. O-rings and collars prevent abrasive ingress Supporting spiral stub roller made of 25x25 mm square Support slat roller made of 10x50 mm strip Bearing unit of the roller with rubber shock absorbers, which reduces the load on the bearing Spring-loaded roller support Unique in Russia system of wing clamping (copying the soil relief)

Specifications

Type of product according to PP RF 616
Disc harrows
Distance between rows
1050 mm
Weight
9500 kg
Number of implement rows
3 pcs
Material of working elements
Metal, 65G steel
Material of frame structures
Metal, steel 09G2S, st3
Harrow type
Disk-type, on separate racks
Working width
9.9 m
Height
1200 mm
Width
6600 mm
Length
7000 mm
Operating speed
8...12
Capacity per hour
11.9
Number of working orans
98 pcs

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
