Available for Import

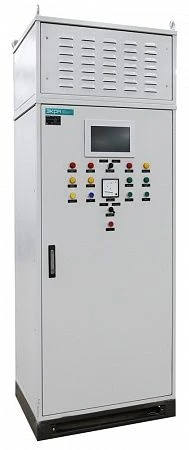

Digital static thyristor exciter of SPVD type

Generator Spare Parts

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

designed to supply the excitation winding, control and automatic regulation of excitation current during direct, reactor, frequency and soft start, synchronous operation and in emergency modes of synchronous motors with power from 200 to 12500 kW with brush excitation system. Exciter is made by bridge or zero rectification schemes with power supply from AC network through power matching transformer.

Specifications

Overall dimensions 2160x800x600 mm

Weight 350 kg

Cooling of thyristor modules Air

Power consumption 32 W

Rated field current 315 A

Rated AC supply voltage 380 V

Rated rectified voltage 230 V

Maximum permissible boost duration 60

Degree of protection upper compartment - IP21

Nominal frequency SBVVBG
