Digital sensor controllers portable PKTSD-1/100

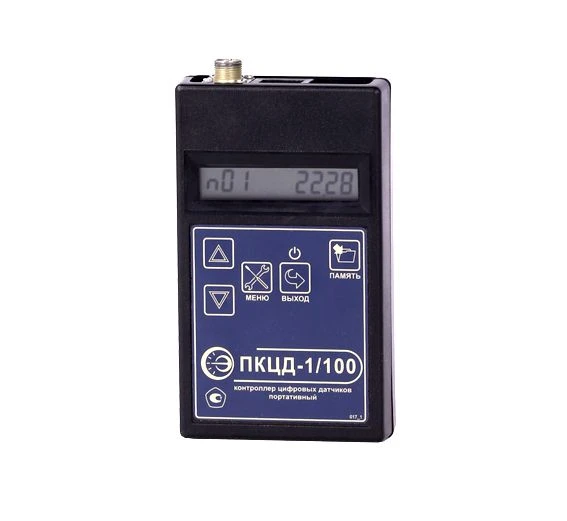

For reading the measurement results from digital temperature sensors, saving the results in non-volatile memory and transferring them to a PC. Portable controller of digital sensors PKTSD-1/100 (hereinafter referred to as the controller) is designed to read measurement results from digital temperature sensors, save the results in non-volatile memory and transfer them to a PC. Built-in algorithms of communication line capacitance measurement allow stable reading of measurements from sensors at a distance of up to 100 metres, with line capacitance up to 15000 pF. The controller supports up to 100 sensors in the network, with polling interval from 10 seconds to 1 hour. Communication with PC is carried out via USB port. When connected to USB, the controller can operate without a battery. The capacity of non-volatile memory is 64 kB.
