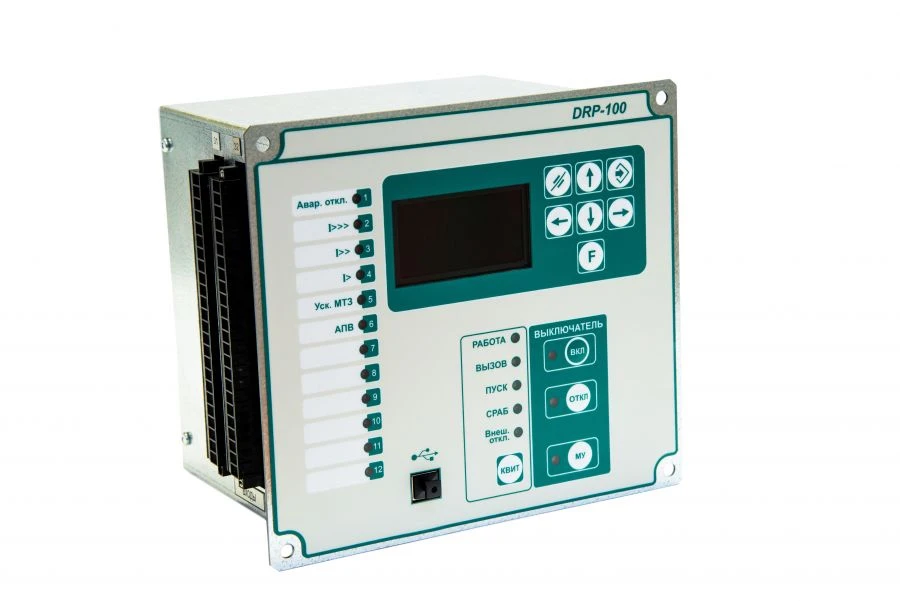

Digital Protection Devices DRP-100 for Voltage Management and Control
Manufacturer:
MECHATRONICS RA LLC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
DRP-100 digital devices are designed to perform functions of relay protection, control, automation, signalling and parameter monitoring of feeders with voltage from 0,4 kV to 35 kV or backup protection of 110 - 220 kV feeders.
Specifications
Protected object
-101-L- Line, transformer, motor ("two-relay" scheme, directional MTZ); -101-SP- Line (power line sectionalisation point); -102-Line, transformer, motor ("three-relay" scheme, non-directional MTZ); -103-B- Input switch; -103-B- Sectional switch.
Voltage range of AC or rectified current operating supply voltage
66...264 V
DC operating supply voltage range
88...370 V
Operating temperature range
-40..+70 °C
Maximum power consumption
10 W
Number of digital inputs
22 pcs
Number of output relays
10;21;10+ de-shunting relay pcs
Overall dimensions
195×175×122; 195×175×144; 195×175×152 mm
Warranty period
5 year
Average MTBF
125000
Average service life
25 year
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
