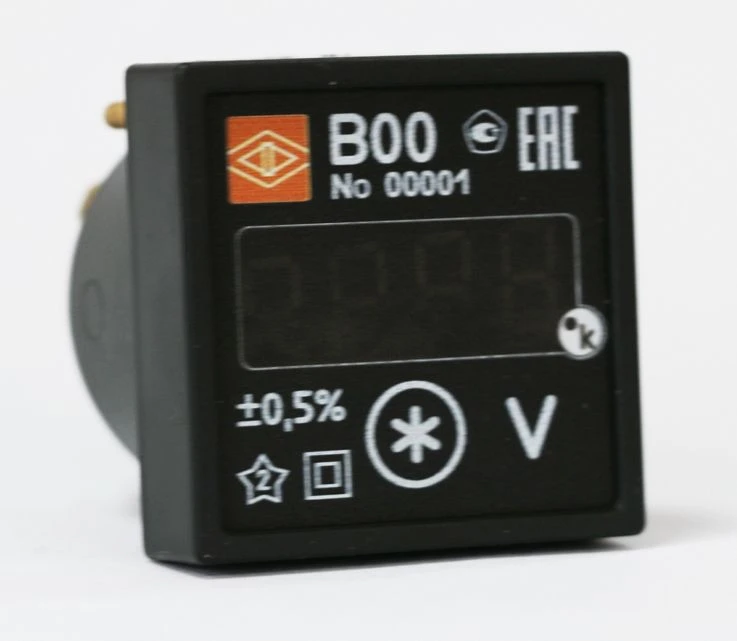

Digital Panel Voltmeter V00 for Accurate AC/DC Voltage Measurement
Manufacturer:
ELECTROPRIBOR OJSC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
Universal panel digital voltmeter B00 is designed to measure and display voltage parameters in single-phase AC and DC networks. The device is used in power engineering and other industries to control the voltage in the network and has a continuous mode of operation.
Specifications
Overall dimension, mm
40×40×44
Height of indicators, mm
14,0
Weight, kg, not more
0,2
Maximum reading range
999.9 (for DC voltage positive polarity only)
Input signal
AC or DC voltage within 30...250 VAC/30...250 VDC (Connection via 100 V voltage transformer possible)
Measuring range
0 to 1.1-Unom
Measuring range of AC voltage in the frequency range
30 to 80 Hz
Limits of basic reduced error
±0.5 % or ±1.0 % or ±1.5 %
Customizing parameters
Using the built-in button on the front panel
Voltage supply
From measuring circuit 30...250 VAC/30...250 VDC
Consumption power, not more
2.0 V-A
Operating temperature range
From -20°C to +70°C
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
