Digital Panel Meter for Measuring Voltage and Current - Model Щ21.2 for Nuclear Power Applications

Electrical Measuring Devices

Manufacturer: ELECTROPRIBOR OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

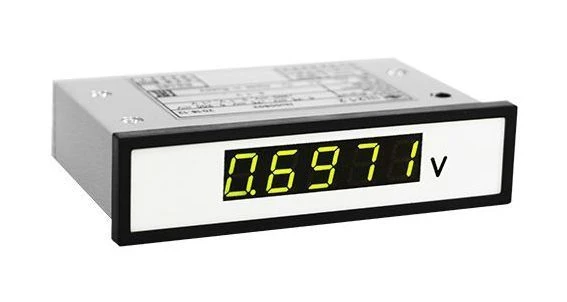

The shield digital electrical measuring device Shch21.2 is designed to measure current or voltage in DC circuits for operation as part of technical means of nuclear power plants, as well as in other industries. The device can be used in a set with primary converters for measurement of non-electrical quantities, if the ranges of the output electrical signal of primary converters correspond to the ranges of the input signal of the devices. The device provides the following features: selection of input signal measuring range, change of reading range and unit name, data transfer to computing devices via RS485 interface (Modbus RTU, original protocol).

The device is made in a metal case of panel mounting. According to the order it is possible to install the device in a shield of other thickness. Safety class of the devices: 2, 3, 4 according to NP-001-2015.

Specifications

Overall dimensions, mm

100×25×78

Input signal measurement ranges

0...75 mV (-75...0...75 mV), 0...200 mV (-200...0...200 mV), 0...1 V (-1...0...0...1 V), 0...10 V (-10...0...10 V), 2...10 V, 0...5 mA (-5...0...0...5 mA), 0...20 mA (-20...0...20 mA), 4...20 mA (-12...4...20 mA).

LED indication

Digital switchboard (counting device); number of digital indicators: 5; digits height: 10 mm; indicators colour: red, yellow, green

Maximum reading range

-19999 to 19999

Basic error

±0,1%

Galvanic isolation of input circuits, interface circuits and power supply circuits

Got it

RS485 communication interface

Quantity: 1; Modbus RTU protocol, original protocol

Power supply voltage

(24 ± 4) VDC

Power consumption from the power supply circuit, not more

2.0 V-A

Reprogramming

Via "Configurator" program (RS485 interface)

Operating temperature range

From -10 to +50 °C (relative humidity 98 % at +35 °C)

Degree of protection

IP20

Safety Class

2, 3, 4 according to NP-001-2015

Mounting

In the shield

Inspection interval

6 years old

Warranty period of operation

24 mos.

Average service life, at least

15 years

Average MTBF

150000 ?

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
