Digital output device. 24 signals up to 0.8 A at 36 V AC or 0.5 A at 48 V DC, group galvanic isolation (MIRage-

Automatic Control Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

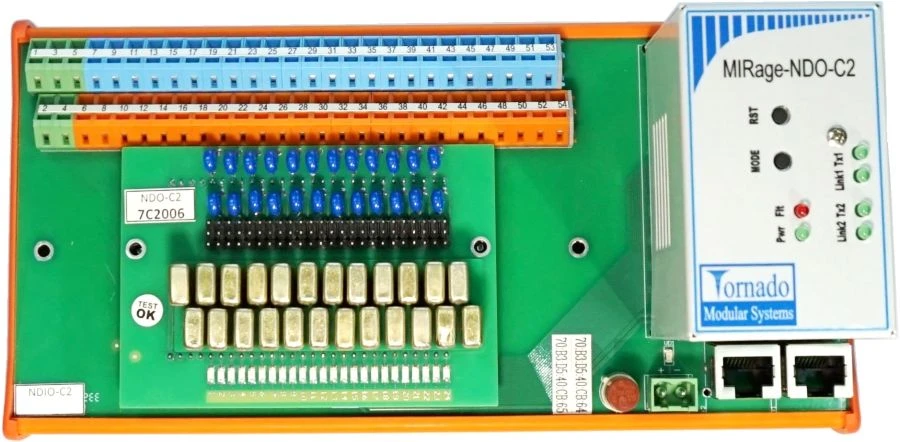

The MIRage-NDO-C2 devices are designed to generate low-power discrete signals of direct and alternating current. Channel switching is carried out through relay contacts. Relay contacts are switchable, the switching contact is common for all channels, and for each channel the type of connected contact can be selected: normally open or normally closed. The selection is made by means of jumpers installed on the interface board. The relay is controlled via a redundant Ethernet 10/100 twisted pair digital interface using the ModBus protocol. MIRage-NDO-C2 devices have 24 output discrete channels (DC). The nominal switching voltage is 24 V. DC have a group galvanic isolation from the system part.Devices MIRage-NDO-C2 are designed to create automated process control systems (ACS) in various industries.

Specifications

Discrete signal levels 5-36V (ASC); 4-48V (DC)

Request response time at 100 Mbit network speed, no more than 2

Mechanical design DIN rail mounting

Interface type Ethernet 10/100BaseTX - 2 channels

Data transfer rate 100

Data exchange protocol Modbus TCP/UDP slave

Galvanic insulation Group

Overall dimensions 216x108x111 mm

Weight, not more 700 g

Wago terminal block, conductor cross-section up to 2.5 mm2

Consumption current, max. 475 mA

External supply voltage (+/- 15%) 24 V

Number of discrete output channels 24 pc

Switched current 0.8 A

Operating temperature range -25...70 °C

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
