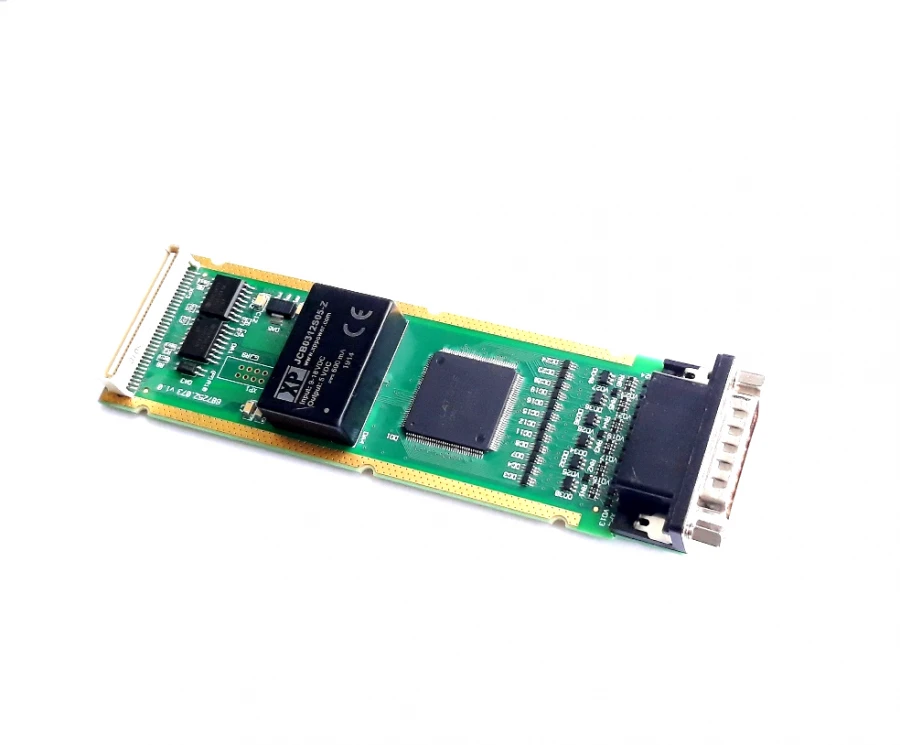

Digital Input/Output Mezzanine MIC1003 for 24 Signals Available for Import

Digital Input/Output Mezzanine MIC1003 for Efficient Signal Handling

Data Processing Boards
Manufacturer: DOLOMANT OJSC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

The MIC1003-03 mezzanine is designed for I/O of 24 signals with 5V CMOS logic levels and contains static protection. The output data on the pins change simultaneously, the latency time is 2.1 µs or less. It can be used for signal frequency measurement, serial code reception and output, code conversion, control of alphanumeric indicators, formation of time control diagrams. The product is mounted on the DIC551 I/O module. Mezzanine interaction with DIC551 is via SPI and UART interfaces.

Specifications

Output levels
5 IN CMOS
Protection against static electricity
Armoured glass
Possibility of receiving interruptions when line state changes
Armoured glass
Galvanic isolation of channels
750 ?
Contact debouncing function
Armoured glass
Frequency measurement function
Up to 2000 kHz
Ability to connect UART to any mezzanine pin
RX, TX lines only
Power supply
From carrier board
Power consumption
Not more than 4W
Overall dimensions
Not more than 146,0 mm × 42,0 mm × 18 mm
Operating temperature range
Minus 50 to plus 85 degrees Celsius
MTBF (Mean Time Between Failures)
At least 3,000,000 hours
Software compatibility with OS
Linux Debian 10; QNX 6.5
Weight
Not more than 0.1 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
