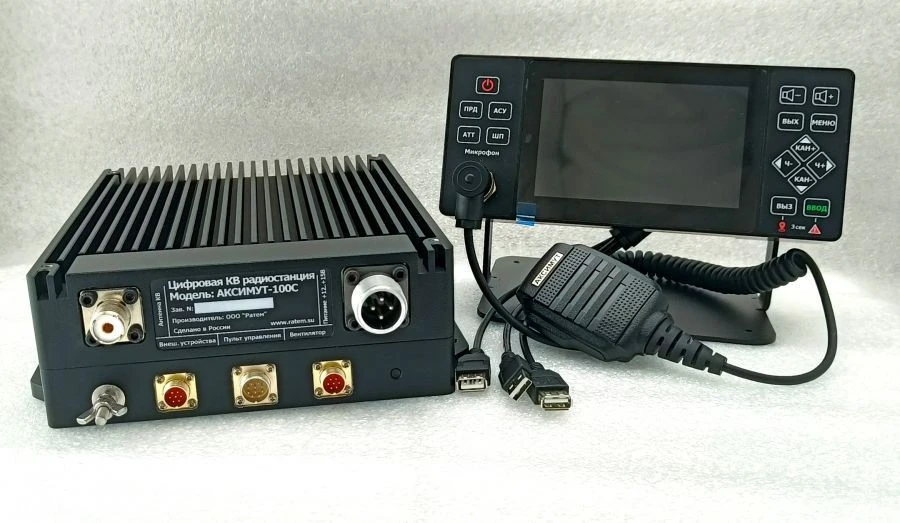

Digital HF Radio Station "Aksimut-100C" for Versatile Communication Applications

Communication Devices Hub

Manufacturer:RATEM LLC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The radio station is based on the technology of software-defined radio (SDR - Software Defined Radio) and is a universal receiving and transmitting platform. The principle of direct digitisation of signals in the receiving mode and direct digital synthesis in the transmitting mode allows the station to be adapted to any task. The types of signals used and the algorithm of operation radio station can be changed by updating/changing the software.

The main purpose of the product is to operate as part of technological and other radio communication networks. The product can be installed and operated as part of mobile and stationary radios. Built-in (optional) receiver of navigation signals of GPS and GLONASS systems allows to organise the operation of mobile and stationary radio systems.

and GLONASS allows to organise the work of synchronous digital types of communication.

Specifications

Operating temperature range

-40...70 °C

Principle of transmitter signal generation

Straight synthesis

DAC clock frequency

640

Principle of construction of the receiving path

Direct digitisation of radio signals

Sensitivity at bandwidth value (0.5 ± 0.1) kHz, nominal input impedance value of 50 and (signal+noise/noise ratio)

3.0E-7 V

Stream IQ resolution

Sampling frequencies

312

Number of program receivers

1 pcs

Single-signal dynamic range in 500 Hz bandwidth, not less than, dB +/-3dB

128

Two-signal selectivity at interference rejection at frequency ± (100 ± 1) kHz when measured in the filter band 3.1 kHz, not less

100

RF ADC clock frequency

160

RF ADC digit capacity

Internal oscillator instability, max (optional)

± 0,3×10(-6) (± 5×10(-8) )

Built-in receiver preamplifier

DAC digit capacity

Transmitted frequency range

1.6...30

Level of nonlinear combinational distortion of the signal at the output relative to the level of the main oscillation (when a tw

– 30 ± 3

ACS operating frequency range

1.6...30

Maximum power output

100 ± 10 W

Maximum data rate, kBaud (depends on firmware)

9600

Signal type (determined by the Aximut-P control panel firmware)

CW, SSB, AM, NFM, BPSK, FSK

Number of memory channels (determined by Aximut-P software)

1000 pcs

Dimensions (DxWxH)

275x220x73 mm

Weight, not more

5 kg

Supply voltage range

12...16 V

Maximum current consumption

25 A

Receiving frequency range

1.6...30

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
