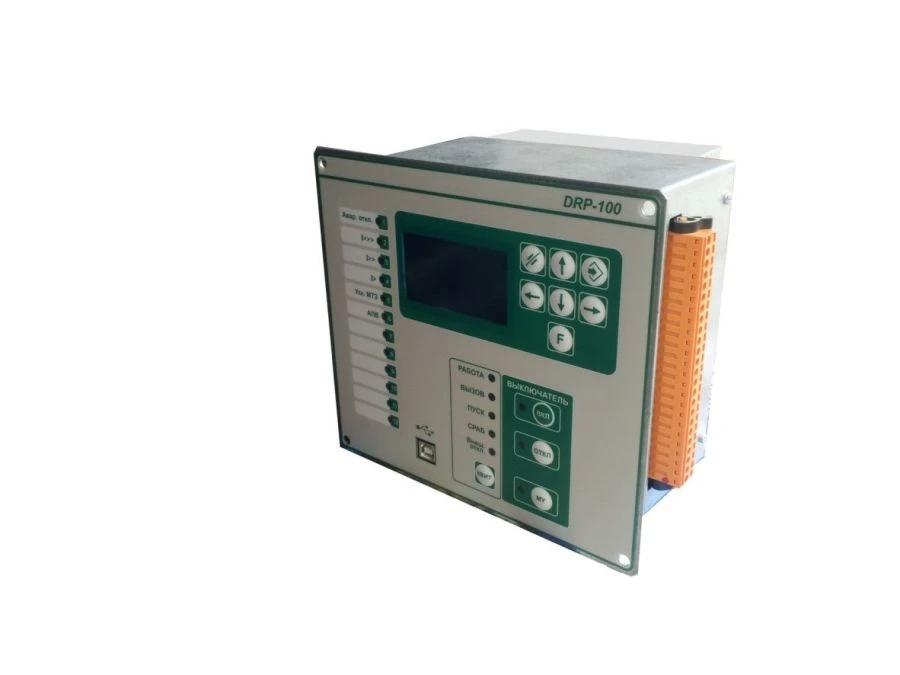

Digital device DRP-103-C-20/1-TD

Low-Voltage Electrical Panels

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

Digital device DRP-103-V-20/1-TD Digital device DRP-101-L-20/1-TD

Description

Designed to perform the functions of relay protection, automation, control, measurement and signalling of input circuit breakers with voltage from 6 to 35 kV at facilities where there is a possible loss of operating current in both emergency and normal modes of operation, as well as at facilities without operating current.

Specifications

Average service life 25 a

Average MTBF 125000

Warranty period 5 a

Overall dimensions 195×175×152 mm

Weight 3.5 kg

Maximum power consumption 6 W

Number of digital inputs 10 pc

Number of analog inputs 6 pc

Range of monitored voltage values 2...280 V

Ranges of monitored current values 0,5 – 100,0 A

Voltage range of AC or rectified current operating supply voltage 66...264 V

DC operating supply voltage range 88...370 V

Rated voltage of digital inputs 220 V

Communication interfaces RS-485; USB

Number of bypass channels 2 pc

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
