DigiCity Universal Data Control Controller for Efficient Data Management

Electrical Control Gear

Manufacturer: PROENERGY LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

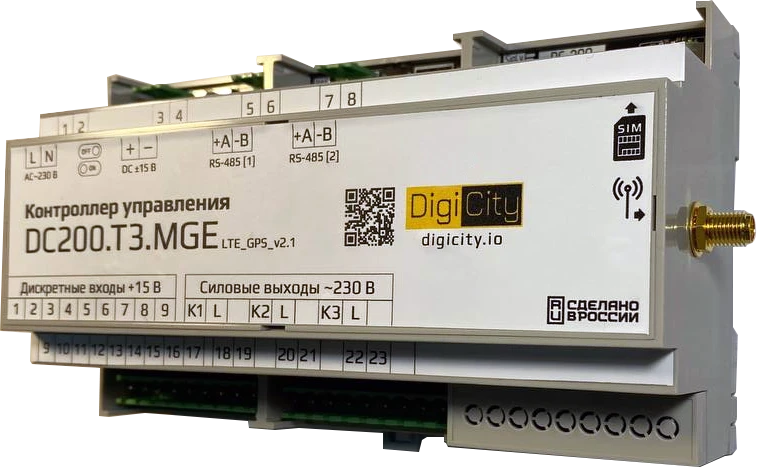

The DigiCity controller is a universal compact PLC in a plastic case with IP20 protection degree, which is designed to collect and transfer data from meters, monitor the state of discrete low-voltage inputs, as well as control switching devices responsible for switching on and off the load. The controller can be part of control cabinets for lighting, pedestrian crossings, electric boilers, work on existing power equipment, or supplied as part of new equipment. The device has an autonomous operation mode, low response time to the dispatcher's commands from the web application, the ability to connect external expansion modules via RS-485, the ability to work with SIM-cards of different operators. In addition to network and fieldbus interfaces, the controller supports all discrete, analogue and special modules via RS-485 and Ethernet.

Specifications

Housing material

Plastic

Installation options

On DIN rail / on the wall

Number of digital inputs

9 pcs

Number of discrete outputs

3 pcs

GSM standards

GSM 2G (GPRS), 4G (LTE), NB-IoT

Supported GSM protocols

NTP, FTP, FTPS, MQTT

Ethernet Standards

1 × 10/100 Mbps (RJ45)

Supported Ethrnet protocols

NTP, FTP, FTPS, MQTT, Modbus-TCP, OPC UA

Battery life

Battery type

18650, replaceable

Power consumption

10 W

Availability of GNSS receiver with support of satellite systems

GPS/GLONASS

Type of GSM modem antenna

SMA

Remote firmware upgrade

Armoured glass

Protocol for interaction with server

MQTT

Integrated real time clock

Armoured glass

Built-in galvanically isolated power supply for digital inputs

On separate terminals with common ground with inputs. Voltage 15 V

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
