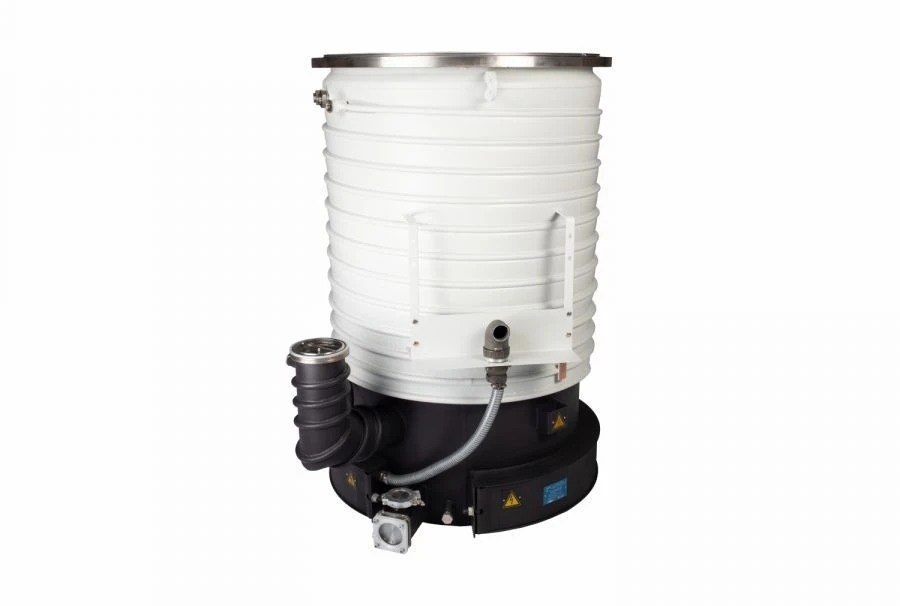

Diffusion high-vacuum pump ND-630

Specialised Vacuum Pumps

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Diffusion high-vacuum pump ND-630 is designed for pumping out of hermetic volumes of air, gases, vapours and vapour-gas mixtures, which are not aggressive to materials of construction and working fluid of the pump and do not contain dripping moisture and mechanical contaminants. The ND-630 diffusion high-vacuum pump is used in conjunction with a forevacuum pump, the speed of action of the forevacuum pump is not less than 253m3/h. Type of climatic execution UHL4, the pump is not intended for operation at fire-explosive production facilities.

Specifications

Overall dimensions (in/out/n), mm, not more 1130/1005/750 mm

Macca, kg, not more 180 kg

Working fluid grade (oil) VAKMA OIL 500

Working fluid quantity, l, min 9.5 l

Working fluid quantity, l, max B1/B8 2100/900 MHz l

Power consumption, kW B1/B8 2100/900 MHz kW

Supply voltage, V 220/380 V

Ultimate residual pressure at ambient air temperature from +10 0C to +35 0C, Pa, not more than 3?10 -4

Highest discharge pressure, Pa, not less than 26.6

Fast action of forevacuum pumps at a pressure of 26 Pa (0.2 mm Hg) in the outlet section should be, m3/h, not less than 253

Rapidity of action on air at pressure 1x10 -1 Pa, l/s, not less than 18000 l/s

Rapidity of action on air at pressure 1x10 -1 Pa, l/s, not less than 10000 l/s

Rapidity of action on air at pressure of 1 Pa, l/s, not less than 1500 hp

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
