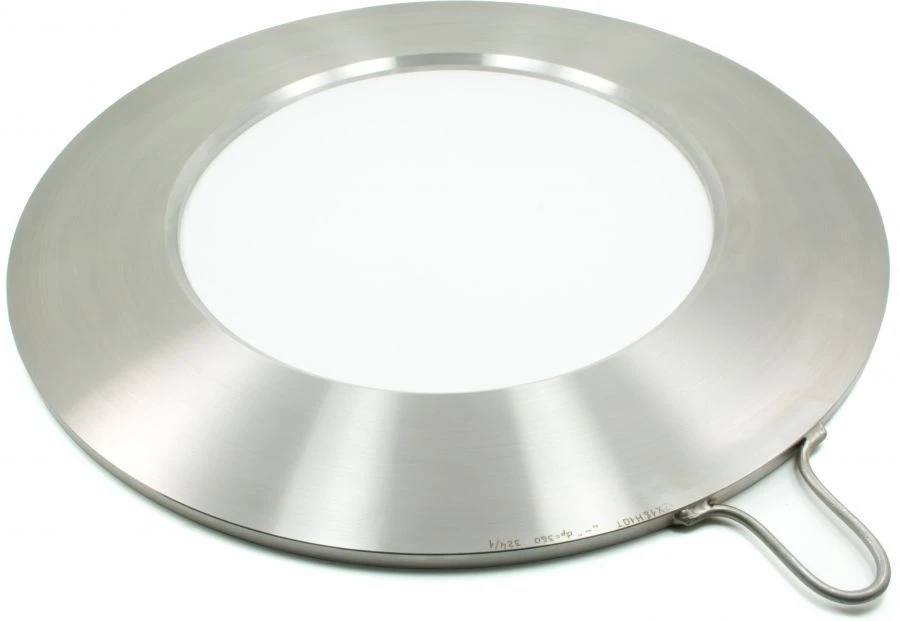

Diaphragm chamberless standard DBS DN 300 - DN 3000 mm
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description
Creating differential pressure when measuring the flow of liquids, gases, water vapour by the method of variable differential pressure.
- Installed in pipeline flanges with or without ring chambers;
- Nominal pipeline diameter from 20 to 3000 mm;
- Nominal pressure in the pipeline up to 40 MPa;
- Angular, flange, three-radius methods of pressure sampling.
- Installed in pipeline flanges with or without ring chambers;
- Nominal pipeline diameter from 20 to 3000 mm;
- Nominal pressure in the pipeline up to 40 MPa;
- Angular, flange, three-radius methods of pressure sampling.
Specifications
Nominal pressure
up to 40 MPa
Nominal diameter
20 to 3000 mm
Assigned service life
20 a
Diaphragm material
Steel 12?18?10? GOST 5632
Operating medium
Liquid, steam, gas
Share your requirements for a quick response!
Instant response in 15 minutes
Best wholesale prices guaranteed
Direct from manufacturer
Delivery & Payment
Shipping Terms
Delivery Time
Sea freight: 30-60 days (depending on destination)
Air freight: 14-21 days (for urgent orders)
Payment Methods
