Diaphragm chamberless DBS. DN 0-3000; PN 0-4 MPa

Instrument Component Parts

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

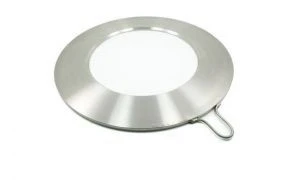

Diaphragm is a type of standard narrowing device (SD) made in the form of a thin disc with an orifice having a sharp rectangular (sometimes conical) edge on the inlet side of the flow. The purpose of the diaphragm is to measure the flow rate of the medium using the variable differential pressure method. It is a flat disc with a hole in the centre. DBS is used at the nominal bore diameter from 300 to 3000 mm inclusive and overpressure in the pipeline not more than 4 MPa.

Technical Specifications

Nominal diameter DN	up to 3,000 mm
Maximum allowable working pressure	Up to 4 MPa
Operating temperature	- 60 to 200 °C
Operating medium	Liquid, steam, gas

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
