Desktop drilling machine 2S118 (analogue of GS2116K and 2T118)

Metal Drilling Machines

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

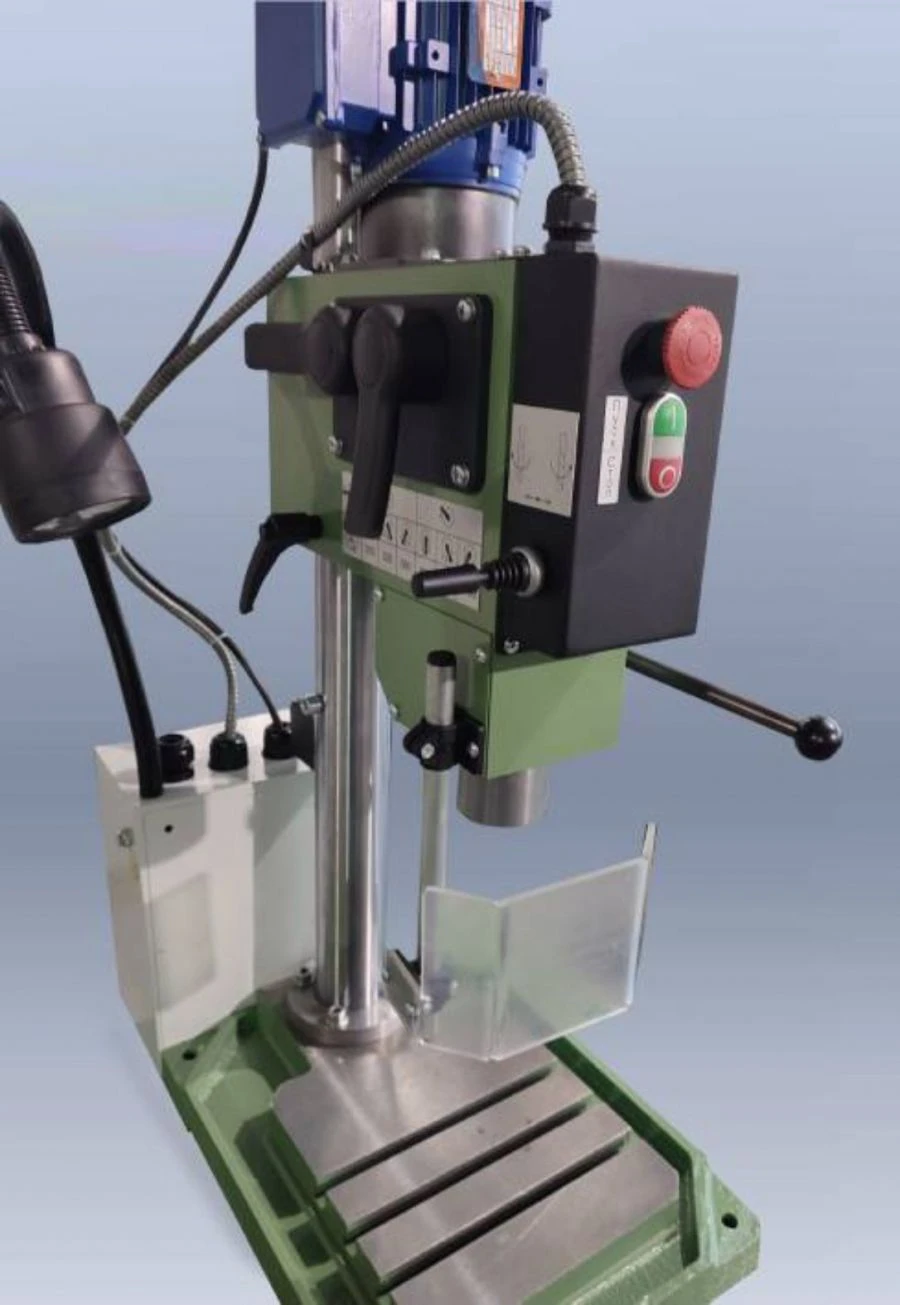

Desktop drilling machine model 2S118 (analogue GS2116K and 2T118) is designed for drilling holes and threading in small parts made of cast iron, steel, non-ferrous alloys and non-metallic materials in the conditions of industrial enterprises, repair shops and household workshops. To perform the following operations: drilling, countersinking; reaming; reaming; reaming; thread cutting.

Technical Specifications

Type of product according to PP RF 616	Vertical drilling machines
Largest nominal drilling diameter	18 mm
Largest drilling diameter in steel 45	18 mm
Largest drilling diameter in cast iron CH20	20 mm
Thread cutting in steel 45	?16 mm
Smallest and largest distance from spindle end to table	160 ... 460 mm
Distance from spindle axis to guide post (outreach)	195 mm
Thread cutting range	M4..M16 mm
Table work surface size	250x250 mm
Number of T-slots	3 pc
Distance between slots	SBVVBG mm
Type of spindle feeding	Manual pc
Dimensions of T-slots according to GOST 1574-91	14?12 mm
Maximum movement of drilling (spindle) head (headstock)	200 mm
Stroke of spindle sleeve	Flat grinder, Specialised grinder mm
Spindle speed	200, 320, 560, 800, 1200, 2100
Number of spindle speeds	6 pc
Spindle inner cone according to GOST 25557-2016	morse 2 AT6 pc
Highest torque on the spindle	30
Highest axial cutting force	4000
Mains current	AC three-phase 50Hz, 380V
Main motion drive motor	0.75 kW
Electric motor shaft speed, synchronous	1500
Pump drive motor	0.18 kW
Electric motor shaft speed, synchronous	3000
Dimensions of the machine (length width height), without cabinet and tool cooling system, max.	3496101168 mm
Machine weight, without pedestal and tool cooling system, max.	125 kg
Machine dimensions (length width height), with tool cabinet and tool cooling system, max.	8607072020 mm
Machine weight, with tool cabinet and tool cooling system, max.	250 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
