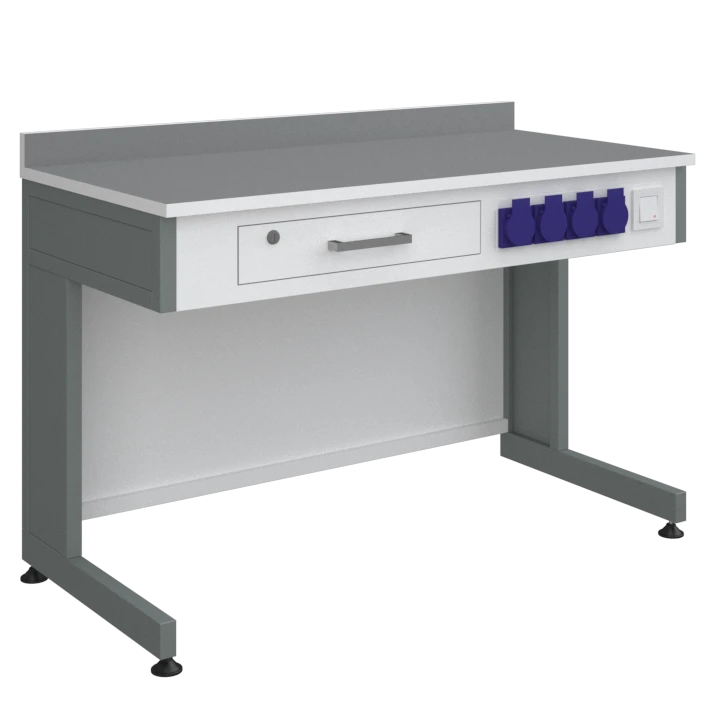

Demonstration table type 1

Size 1200x750x960/900mm. Rack 874x670x. It has a C-shape. It is made of pipes 30x30x1,5mm, 60x30x1,5mm and sheet metal 0,7mm thick. The rack (sidewall) is welded.All visible, end holes of pipes are closed with plastic plugs.Overall dimensions of the kingdom 1096x790mm. Frame Overall dimensions 1096x790mm. It is made of 30x30x1,5 mm section pipe.Front electric panel Overall dimensions 158x1096mm.It is made of 30x30x1,5 mm section pipe and 1.0 mm thick sheet metal in the form of a box. Boxes are bent from sheet metal, 0.7mm thick and have the dimensions 368x98mm, 58x98mm and perimeter edge 15mm. In the box with overall dimensions of 368h98mm made 4 holes, diameter 45mm for the installation of splash-proof sockets 220v degree of protection IP54 and one hole 47h37mm, for the installation of circuit breaker automatic differential current of two poles. Drawer LDFP 16mm.Table top bottom and top covered with plastic
