Available for Import

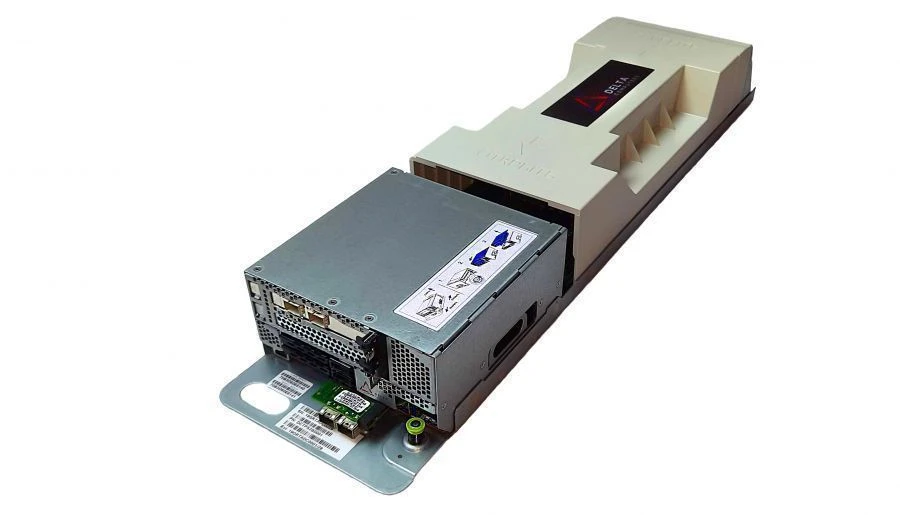

Delta Tioga Pass Server I22A4S0D12-01 (VRTG.467569.101-14)

Data Processing Systems

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

The product is a functional computing network device that provides services to workstations, personal computers or other functional devices.
The server configuration is a high-performance computing device with data storage and processing function. The product design supports hot-swap function. This function allows you to replace a damaged node, without the need for a complete power failure of the server, which minimises disruption to the system.

Technical Specifications

Type of RAM	RDIMM/LRDIMM
Number of RAM slots	16
Number of cooling fans	2
Processor connector	Two socket p LGA 3647 (socket p)
Processor family	Intel® Xeon® Scalable Processor / 2nd Intel® Xeon® Scalable Processor
Interface connection of processors	intel® ultra path interconnect (upi) with operating speeds up to 10.4gt/s.
Processor chipset	intel® c621
Type of RAM	DDR4
RAM bus frequency	2400/2666/2933 MHz
Maximum RAM capacity	Up to 4096 GB (using 16 256 GB RAM modules)
Storage subsystem (on the motherboard)	Slot for 1 M.2 PCIe x4 or SATA 2280/22110 size M.2 SSD
Storage subsystem (in the disk add-on)	Slots for 4 x 2.5" 7mm SATA SSDs; Slots for 2 x4* M.2 NVMe x4* SSDs
Expansion card connectors (OCP)	Mezzanine OCP 2.0 card (a+b)
Platform management interface	IPMI via RJ-45 port (front panel)
Video interface	Mini VGA (front panel)
USB connectors	USB 2.0/3.0 - 1 pc, USB Type C - 1 pc.
Testing interface	14-pin server debug card connector (front panel)
Dimensions (W x L x H)	2OU, 174 mm x 880 mm x 89 mm
Weight	6.9...7.3 kg
Power supply	direct current 12.2 V ± 0.4 V
Rear panel I/O interfaces	PCIe x8 via AirMax - 2 pcs (optional)

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.

Shipping & Payment Information

Shipping Terms

FOB: Novorossiysk, Russia
CIF: Available to major ports worldwide
EXW: Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination)
Air freight: 14-21 days (for urgent orders)
Production lead time: 30-90 days (depending on order size)

Payment Methods

Letter of Credit (L/C)
Wire Transfer (T/T)
Escrow Services

Order Minimums

We work with orders starting from 1 container
You can mix different products in one container
Volume discounts available for larger orders

Customs & Documentation Support

We provide comprehensive assistance with all export documentation, customs clearance, and logistics arrangements. Our team has extensive experience facilitating international trade with businesses in Africa, Middle East, Asia, and Latin America.
