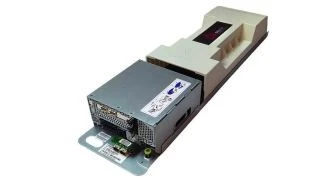

Delta Tioga Pass Server I22A2S0D02-01 (VRTG.467569.101-13)

Data Processing Systems

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

The product is a functional computing network device that provides services to workstations, personal computers or other functional devices.Server configuration is a high-performance computing device with the function of data storage and processing. The product design supports hot-swap function. This function allows you to replace the damaged node, without the need for a complete power failure of the server, which minimises disruption to the system.

Technical Specifications

Rear panel I/O interfaces	PCIe x8 via AirMax - 2 pcs (optional)
Power supply	Direct current 12.2 V 0.4 V from live busbar
Weight	6.9...7.3 kg
Dimensions (W x L x H)	2OU, 174 mm x 880 mm x 89 mm
Testing interface	14-pin server debug card connector (front panel)
USB connectors	USB 2.0/3.0 - 1 pc, USB Type C - 1 pc.
Video interface	Mini VGA (front panel)
Platform management interface	IPMI via RJ-45 port (front panel)
Expansion card connectors (OCP)	Mezzanine OCP 2.0 card (a+b)
Storage subsystem (in the disk add-on)	Slots for 2 2.5 7mm SATA SSDs
Storage subsystem (on motherboard) - optional	Slots for 2 M.2 NVMe x4 SSDs
Storage subsystem (on the motherboard)	Slot for 1 M.2 PCIe x4 or SATA 2280/22110 size M.2 SSD
Maximum RAM capacity	Up to 4096 GB (using 16 256 GB RAM modules)
Type of RAM	RDIMM/LRDIMM
RAM bus frequency	2400/2666/2933 MHz
Type of RAM	DDR4
Number of RAM slots	16
Processor chipset	Intel C621
Interface connection of processors	Intel Ultra Path Interconnect (UPI) with operating speeds up to 10.4gt/sec.
Processor family	Intel Xeon Scalable processor / 2nd intel Xeon Scalable processor
Processor connector	Two socket p LGA 3647 (socket p)
Number of cooling fans	2

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
