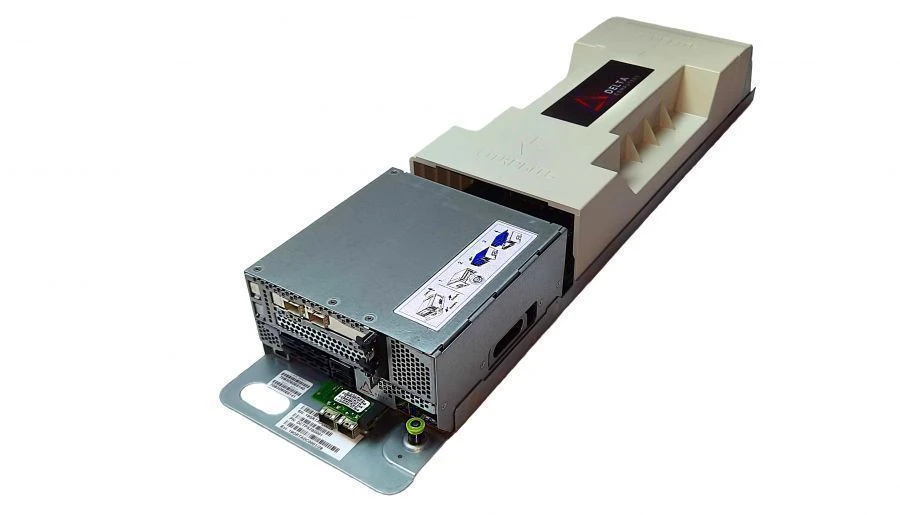

Available for ImportDelta Tioga Pass Server I22A2S0D02-01 - Efficient Networking Solution for Workstations
Manufacturer:DELTA COMPUTERS LLC
Price:Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
The product is a functional computing network device that provides services to workstations, personal computers or other functional devices. The server configuration is a high-performance computing device with data storage and processing function. The product design supports hot-swap function. This function allows you to replace a damaged node, without the need for a complete power failure of the server, which minimises disruption to the system.
Specifications
Rear panel I/O interfaces
PCIe x8 via AirMax - 2 pcs (optional)
Power supply
DC 12.2 V ± 0.4 V from the current busbar
Weight
6.9...7.3 kg
Dimensions (W x L x H)
2OU, 174 mm x 880 mm x 89 mm
Testing interface
14-pin server debug card connector (front panel)
USB connectors
USB 2.0/3.0 - 1 pc, USB Type C - 1 pc.
Video interface
Mini VGA (front panel)
Platform management interface
IPMI via RJ-45 port (front panel)
Expansion card connectors (OCP)
Mezzanine OCP 2.0 card (a+b)
Storage subsystem (in the disk add-on)
Slots for 2 x 2.5" 7mm SATA SSDs
Storage subsystem (on motherboard) - optional
Slots for 2 M.2 NVMe x4 SSDs
Storage subsystem (on the motherboard)
Slot for 1 M.2 PCIe x4 or SATA 2280/22110 size M.2 SSD
Maximum RAM capacity
Up to 4096 GB (using 16 256 GB RAM modules)
Type of RAM
RDIMM/LRDIMM
RAM bus frequency
2400/2666/2933 MHz
Type of RAM
DDR4
Number of RAM slots
16
Processor chipset
Intel® C621
Interface connection of processors
intel® ultra path interconnect (upi) with operating speeds up to 10.4gt/s.
Processor family
Intel® Xeon® Scalable processor / 2nd intel® Xeon® Scalable processor
Processor connector
Two socket p LGA 3647 (socket p)
Number of cooling fans
2
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
