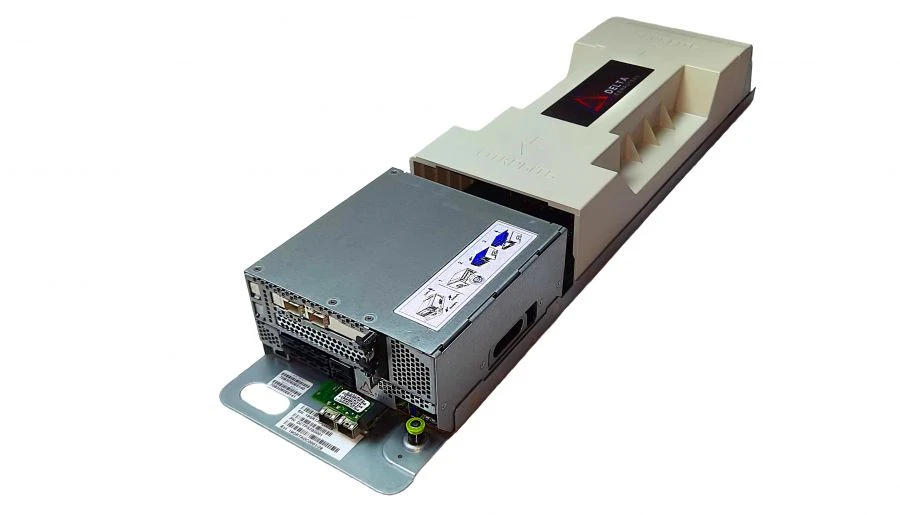

Delta Tioga Pass I22A8U2S00 Server for Computing Networks

Available for Import

Delta Tioga Pass I22A8U2S00 Server for Reliable Computing Network Services

Digital Computing Systems

Manufacturer: DELTA SOLUTIONS LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Delta Tioga Pass server I22A2S0D21 Delta Tioga Pass Server I22A4U1S01 Delta Tioga Pass Server I22A6S0D20 Delta Tioga Pass Server I22A8S0D01 Delta Tioga Pass I22A4S0D21 server

Delta Tioga Pass Server I22A6U0D00 Delta Tioga Pass I22A2U0D21 server Delta Server Tioga Pass I22A0D0D21 Delta Tioga Pass Server I22A6S0D02 Delta Tioga Pass Server I22A10U0D00 Delta Tioga Pass Server I22A2S0D02

Description

The product represents a functional device of a computer network providing services to workstations, personal computers or other functional devices. The server configuration is a high-performance computing device with data storage and processing function. The product design supports hot-swap function. This function allows you to replace the damaged node, without the need for a complete power failure of the server, which minimises interruptions in the operation of the system.

Specifications

Rear panel I/O interfaces

PCIe x8 via AirMax - 2 pcs (optional)

Power supply

DC 12.2 V ± 0.4 V from the current busbar

Dimensions (W x L x H)

2OU, 174 mm x 880 mm x 89 mm

Testing interface

14-pin server debug card connector (front panel)

USB connectors

USB 2.0/3.0 - 1 pc USB Type C - 1 pc

Video interface

Mini VGA (front panel)

Platform management interface

IPMI via RJ-45 port (front panel)

Expansion card connectors (OCP)

mezzanine OCP 2.0 card (a+b)

Storage subsystem (in the disk add-on)

Slots for 8 x 2.5" U.2 7mm NVMe SSDs

Storage subsystem (on motherboard) - optional

Slots for 2 2.5" 7mm SATA SSDs

Number of cooling fans

Weight

6.9...7.3 kg

Storage subsystem (on the motherboard)

Slots for 2 M.2 NVMe x4* SSDs

Maximum RAM capacity

Up to 4096 GB (using 16 256 GB RAM modules)

Type of RAM

RDIMM/LRDIMM

RAM bus frequency

2400/2666/2933 MHz

Type of RAM

DDR4

Processor chipset

intel® C621

Interface connection of processors

intel® ultra path interconnect (upi) with operating speeds up to 10.4gt/s.

Processor family

intel® Xeon® Scalable processor / 2nd intel® Xeon® Scalable processor

Processor connector

Two socket p LGA 3647 (socket p)

Type of product according to PP RF 616

Computational electronic digital machines, supplied as systems for automatic data processing

Number of RAM slots

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
