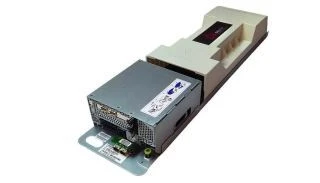

Delta Tioga Pass I22A2S0D02-01 Server: Enhancing Network Computing Efficiency

Data Processing Systems

Manufacturer:DELTA SOLUTIONS LLC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The product is a functional computing network device that provides services to workstations, personal computers or other functional devices.Server configuration is a high-performance computing device with the function of data storage and processing. The product design supports hot-swap function. This function allows you to replace the damaged node, without the need for a complete power failure of the server, which minimises disruption to the system.

Specifications

Rear panel I/O interfaces

PCIe x8 via AirMax - 2 pcs (optional)

Power supply

Direct current 12.2 V 0.4 V from live busbar

Weight

6.9...7.3 kg

Dimensions (W x L x H)

2OU, 174 mm x 880 mm x 89 mm

Testing interface

14-pin server debug card connector (front panel)

USB connectors

USB 2.0/3.0 - 1 pc, USB Type C - 1 pc.

Video interface

Mini VGA (front panel)

Platform management interface

IPMI via RJ-45 port (front panel)

Expansion card connectors (OCP)

Mezzanine OCP 2.0 card (a+b)

Storage subsystem (in the disk add-on)

Slots for 2 2.5 7mm SATA SSDs

Storage subsystem (on motherboard) - optional

Slots for 2 M.2 NVMe x4 SSDs

Storage subsystem (on the motherboard)

Slot for 1 M.2 PCIe x4 or SATA 2280/22110 size M.2 SSD

Maximum RAM capacity

Up to 4096 GB (using 16 256 GB RAM modules)

Type of RAM

RDIMM/LRDIMM

RAM bus frequency

2400/2666/2933 MHz

Type of RAM

DDR4

Number of RAM slots

Processor chipset

Intel C621

Interface connection of processors

Intel Ultra Path Interconnect (UPI) with operating speeds up to 10.4gt/sec.

Processor family

Intel Xeon Scalable processor / 2nd intel Xeon Scalable processor

Processor connector

Two socket p LGA 3647 (socket p)

Number of cooling fans

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
