Available for Import

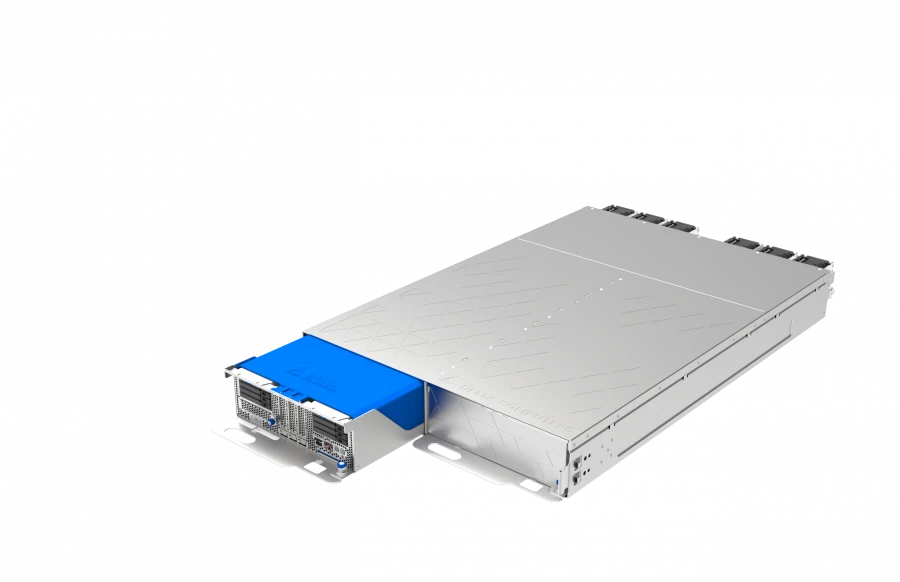

Delta Serval L6RL.R100.F05 Server for High-Performance Data Processing
Manufacturer:
DELTA SOLUTIONS LLC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
Delta Serval server is a functional device of the computing network, which performs computing tasks for processing large amounts of data, as well as storage tasks and complex hyperconverged tasks.
Specifications
Dimensions (W x L x H)
536 mm x 926 mm x 95 mm
Total server weight
27.9 kg
Weight
Maximum 10 kg (specified for one VM)
Remote control
SNMP, SMTP, IPMI 2.0, Redfish API, KVM, "Delta BMC" microcode
BMC controller
ASPEED AST2600
Interface for debugging (if service board is available)
1 x USB Type-C
USB connectors (if service board is available)
2 x USB 3.0
RAID support
1 x Intel VROC connector
Drive slots, 7 mm
8 x hot-swappable 2.5" SSD (U.2 NVMe) (specified per VM)
Expansion slots, HHHL
2 x PCIe 5.0 x 16 or 1 x PCIe 5.0 x 16, 2 x PCIe 5.0 x 8 (specified for a single VM)
I/O ports
1 x USB 3.0, 1 x Mini-VGA, 1 x PWR button, 1 x UID button, Reset button (specified for one VM)
Platform management interface
Ethernet 10/100/1000 Mbps via RJ45 port (specified for one VM)
Connector for OCP 3.0 expansion card
PCIe 5.0 x 16 (specified per VM)
Type of RAM
DDR5, 8 channels per processor, RDIMM/LRDIMM
Number of RAM slots
32 (specified for one VM)
Maximum RAM capacity
8 TB RAM (specified for one VM)
Maximum processor heat dissipation (TDP)
350 watts
Processor chipset
Intel® C741
Processor connection interface
Intel® Ultra Path Interconnect (UPI) - 4 lines
Processor generation
Intel Xeon Scalable 5th Generation (Emerald Rapids) or Intel Xeon Scalable 4th Generation (Sapphire Rapids)
Number of processor sockets
2 connectors (specified for one VM)
Number of cooling fans in the module
6 pcs. with hot-swap function and indication
Power supply
From centralized busbar, OCP
Form factor
2OU, OCP Rack
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
