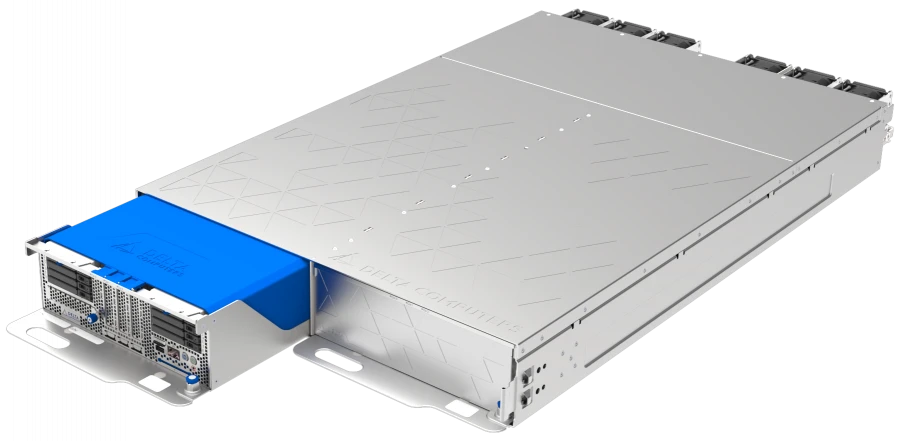

Delta Serval L6RL.R100.F05 Server for Data Processing and Storage

Available for Import

Delta Serval L6RL.R100.F05 Server for Efficient Data Processing and Storage

Data Processing Systems

Manufacturer: DELTA COMPUTERS LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Delta Serval server is a functional device of the computing network, which performs computing tasks for processing large amounts of data, as well as storage tasks and complex hyperconverged tasks.

Specifications

Weight

Maximum 10 kg (specified for one VM)

Form factor

2OU, OCP Rack

Power supply

From centralized busbar, OCP

Number of cooling fans

6 pcs. with hot-swap function and indication

Number of processor sockets

2 connectors (specified for one VM)

Processor generation

Intel Xeon Scalable 5th Generation (Emerald Rapids) or Intel Xeon Scalable 4th Generation (Sapphire Rapids)

Processor connection interface

Intel® Ultra Path Interconnect (UPI) - 4 lines

Processor chipset

Intel® C741

Maximum processor heat dissipation (TDP)

350 watts

Maximum RAM capacity

8 TB RAM (specified for one VM)

Number of RAM slots

32 (specified for one VM)

Type of RAM

DDR5, 8 channels per processor, RDIMM/LRDIMM

Connector for OCP 3.0 expansion card

PCIe 5.0 x 16 (specified per VM)

Platform management interface

Ethernet 10/100/1000 Mbps via RJ45 port (specified for one VM)

I/O ports

1 x USB 3.0, 1 x Mini-VGA, 1 x PWR button, 1 x UID button, Reset button (specified for one VM)

Expansion slots, HHHL

2 x PCIe 5.0 x 16 or 1 x PCIe 5.0 x 16, 2 x PCIe 5.0 x 8 (specified for a single VM)

Drive slots, 7 mm

8 x hot-swappable 2.5" SSD (U.2 NVMe) (specified per VM)

RAID support

1 x Intel VROC connector

USB connectors (if service board is available)

2 x USB 3.0

Interface for debugging (if service board is available)

1 x USB Type-C

BMC controller

ASPEED AST2600

Remote control

SNMP, SMTP, IPMI 2.0, Redfish API, KVM, "Delta BMC" microcode

Total server weight

27.9 kg

Dimensions (W x L x H)

536 mm x 926 mm x 95 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
