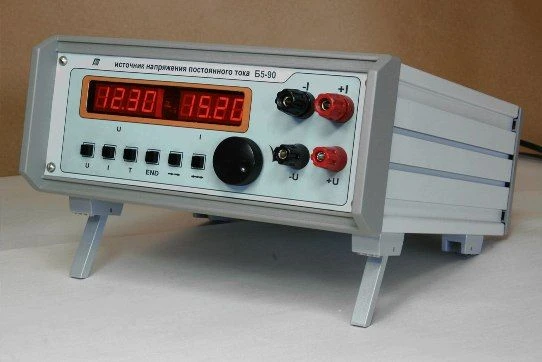

DC voltage source B5-90

The B5-90 DC voltage source, included in the State Register of Measurement Devices under No. 69939-17, is designed for power supply with stabilised DC voltage or current to radio electronic equipment during laboratory research, operation, production and maintenance, as well as for operation as a part of measuring complexes. The B5-90 has the possibility of programming up to 6 user profiles of 30 points each. This feature gives the possibility to set the trajectories of output voltage or (and) current changes in time, as well as to set the number of repetitions of this profile up to 250 times. This feature is useful for battery charging and various electroplating applications. For special galvanic applications there is an option "current REVERSE", which can be used in the formation of a user profile (this option is not included in the basic equipment and is available upon separate request of the customer).
