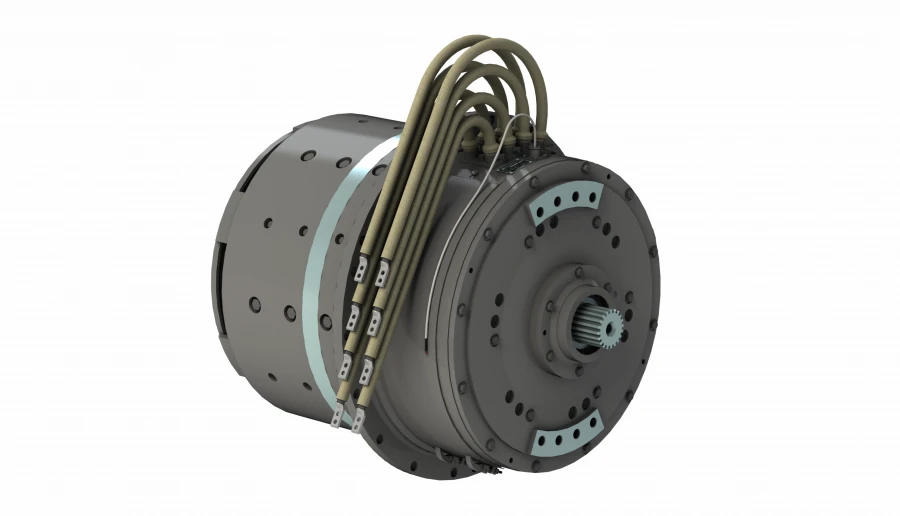

DC Traction Motor EDP-800 for BELAZ Dump Trucks

Available for Import

DC Traction Motor EDP-800 for Heavy-Duty BELAZ Dump Trucks

Industrial DC Motors

Manufacturer: SIBELECTROPRIVOD LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

DC traction motor of EDP-800 type is designed for motor-wheels of dump trucks "BelAZ" with payload up to 240 tonnes, operated in moderately cold and tropical climates. Type of climatic execution UHL2, T2 according to GOST 15150. In the conventional designation of the electric motor the letters and digits denote: EDP - direct current electric motor; 800 - electric motor power, kW; UHL2, T2 - type of climatic execution and placement category.

Example of electric motor record in technical documentation of other product and when ordering it: "Traction electric motor EDP-800, UHL2, GPIN.652441.006 TU", "Electric traction motor EDP-800, T2, GPIN.652441.006 TU".

Specifications

Nominal voltage

890 V

Nominal speed

600

Overall dimensions (DxW),mm

1493*1200

Rated power

800(???2);720(?2) kW

Rated torque, N*m

12700(???2);11500(?2)

Maximum torque, N*m

25400(???2);22900(?2)

Efficiency factor

92 %

Rated degree of excitation

100 %

Minimum degree of excitation

32 %

Maximum speed

2000

Operating mode nominal

S2 (hourly)

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
