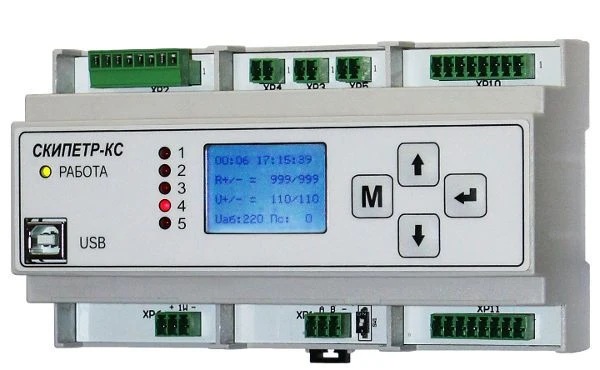

DC Network Parameter Monitoring Device SKIPETR-KS for Power Plants and Substations

UKPS SKIPETR-KS is designed to monitor the parameters of DC network with IT grounding system at power plants, substations and other facilities. It has different versions by nominal voltage of the controlled network, can be used in networks with levelling T-bridge and with AB with additional (tail) elements. The device is optionally equipped with current clamps SKIPETR-KT, which allow manual search of the ground fault location without disconnecting consumers.

Main functions of UKPS SKIPETR-KS -Control of charging-discharging current of AB. -Detection of AB breakage. -Control of AB symmetry.

-Mains voltage monitoring. -Current and voltage ripple control. -Determination of the voltage of the poles of the network in relation to the ground and voltage skew.

-Control of the insulation resistance of the network as a whole and by poles. -Determination of the capacity of the network. -Determination of the fault location with the help of current clamps SKIPETR-KT.
